It’s 2 AM on a Sunday when your phone rings. The night shift supervisor at your CHPP is on the line. The heavy media cyclone control has gone haywire because the densitometer failed, magnetite is being wasted at $3,000 per hour, and the train loadout is backing up. Your usual supplier can’t deliver until Wednesday. What do you do?
If you work in coal preparation in Queensland’s Bowen Basin, this scenario isn’t hypothetical. It’s a Tuesday. Or a Friday. Or Christmas Eve. With 43 coal mining operations in the region as of March 2022, the Bowen Basin is Australia’s coal heartland, and the CHPPs (Coal Handling Preparation Plants) are the critical link between the mine face and the export market.
This guide is written for the maintenance engineers, instrument techs, and process operators who keep these plants running. We’ll cover why instrumentation fails in Bowen Basin conditions, what technologies work best for CHPP applications, and how to get rapid support when breakdowns happen. No marketing fluff, just practical advice from engineers who’ve done the hard yards in the field.
At Endless Process Automation, we’re based in Queensland with offices in Narangba, Gladstone, and Mackay. We supply and support multiple vendor platforms because we’ve learned that no single manufacturer has the best solution for every application.
Why CHPP instrumentation fails in Bowen Basin conditions
The Bowen Basin throws everything at your instrumentation. Understanding the specific failure modes helps you select equipment that lasts and plan your spares strategy accordingly.
The environment

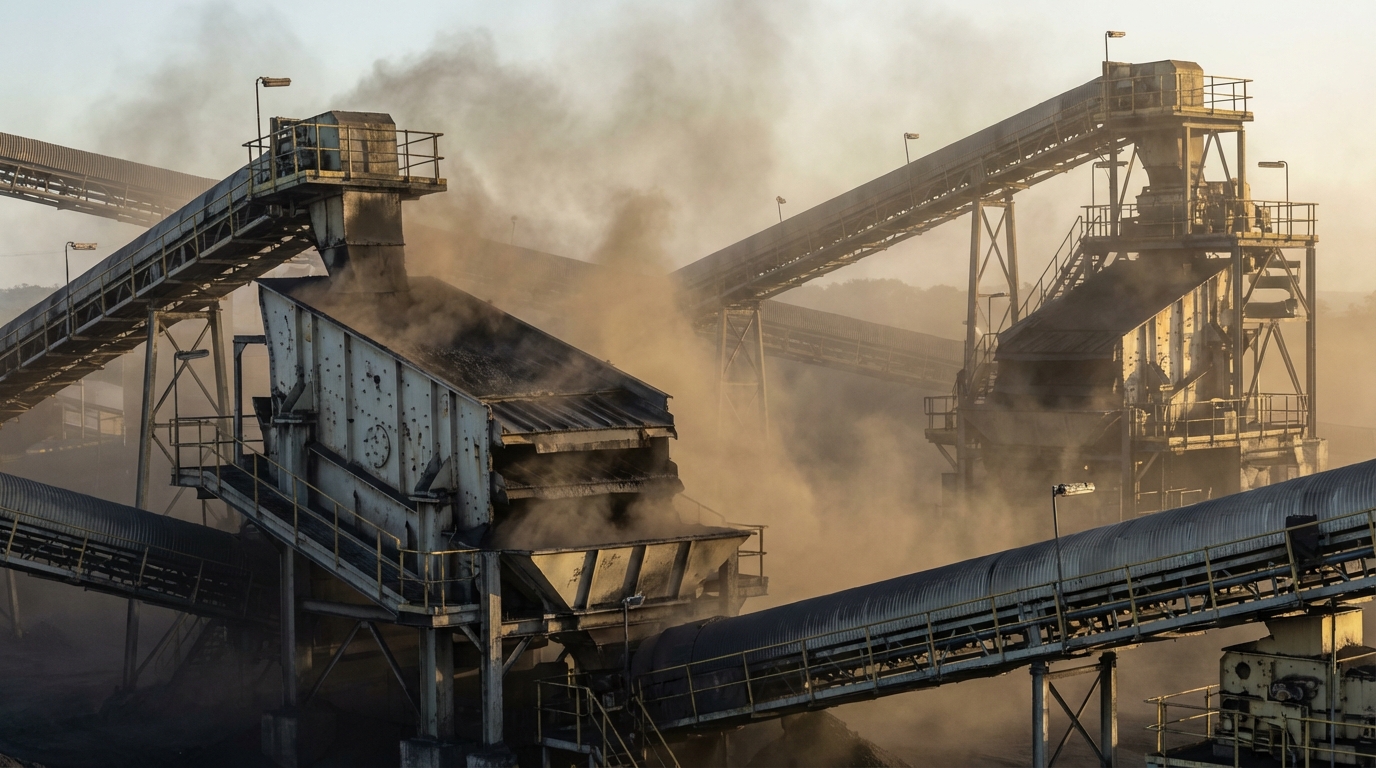

Dust ingress. Bowen Basin dust is particularly fine and abrasive. It’s not just coal dust – it’s silica, shale, and whatever else came out of the ground. IP ratings matter, but sealing integrity over years of thermal cycling matters more.
High humidity. Gladstone and Mackay conditions see 70%+ humidity year-round. Electronics that survive dry climates corrode here. Condensation in enclosures is a constant battle.
Temperature swings. 40°C+ days followed by cool nights create thermal stress on solder joints, seals, and cable glands. Your instrumentation expands and contracts daily.
Vibration. Crushers, screens, and conveyors transmit vibration through the plant. Transmitters mounted on steelwork without proper isolation fail prematurely.
Common failure modes
Magnetic flow meter electrode coating. In magnetite slurry service, the electrodes on your mag meter gradually coat with magnetic material. The reading drifts, then fails. Regular cleaning helps, but electrode material selection matters more.
Density meter radiation source issues. Nuclear densitometers face aging sources, compliance paperwork, and disposal headaches. When the source decays below usable levels, replacement isn’t a quick process.
Radar level false readings. Dust and foam in coal sumps cause radar units to lose signal or read falsely. Some units handle this better than others.
Pressure transmitter diaphragm damage. Abrasive slurry finds its way into impulse lines and damages transmitter diaphragms. Diaphragm seals help, but they’re another potential failure point.
Control system communication failures. Electrical noise from VSDs and high-current equipment causes intermittent communication errors on fieldbus networks.
The cost of failure
Unplanned downtime in CHPPs can cost $50,000-$100,000+ per hour when you factor in lost production, demurrage on vessels, and downstream impacts. That’s why rapid breakdown response isn’t just convenient, it’s economically critical.
Critical instrumentation in coal prep plants
Let’s break down the key measurements in a CHPP and what technologies work best in Bowen Basin conditions.
Flow measurement
Magnetic flow meters are the workhorse for slurry lines. They handle magnetite, water, and fines without obstruction. For CHPP applications, look for:
- Siemens SITRANS FM MAG 3100 – Rugged, fully welded sensor with various liner and electrode options. The MAG 3100 P variant handles process temperatures up to 302°F with IECEx certification for hazardous areas.
Source: https://www.siemens.com/en-us/products/sitrans/f-m-mag-3100/ - Endress+Hauser Promag – Well-established in Australian mining with good local support.
- Krohne OPTIFLUX – Alternative with competitive pricing and solid performance.
For temporary or emergency measurements, portable ultrasonic clamp-on flow meters can keep you running while you sort out a permanent fix. They’re not as accurate, but they’ll get you through a shutdown.
For more on selecting flow meters for mining, see our flow meter selection guide.
Density measurement
This is where CHPPs face a real decision. Traditional nuclear densitometers work well but come with licensing requirements, safety paperwork, and eventual source disposal costs. They’re also a procurement headache when they fail.

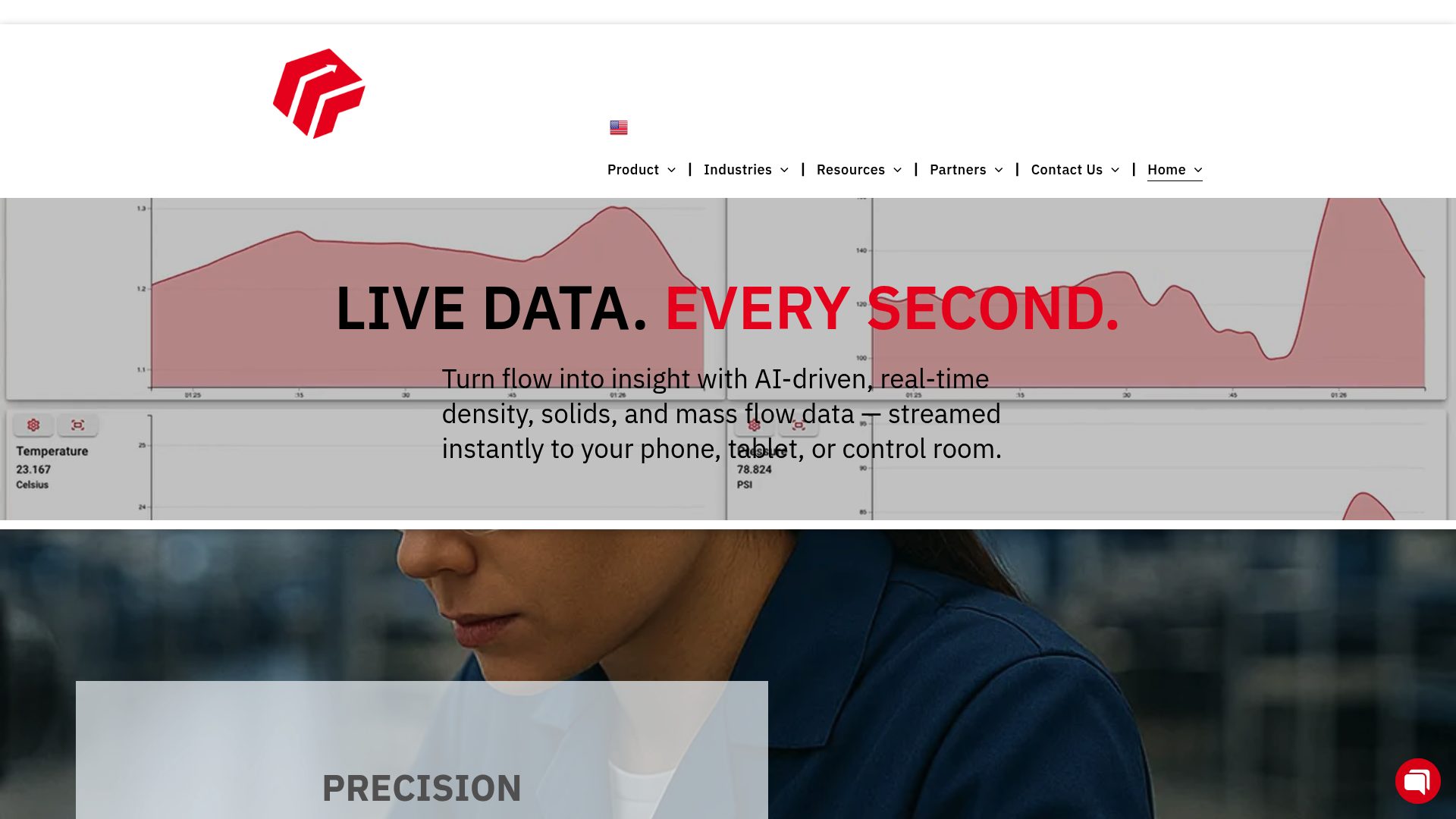

Non-nuclear alternatives like Red Meters use a patented inline deflection system to measure slurry density in real-time without radiation. Their Ruby 2.0 software streams data to your phone or control room via cloud connectivity.
For heavy media cyclone control and thickener underflow, non-nuclear density meters eliminate the compliance burden while giving you the process control you need. We’ve seen growing interest in these units from mines looking to simplify their operations.
Level measurement
Radar works well for coal stockpiles and large tanks. The key is selecting the right frequency and antenna for dusty conditions. Radar series uses 80 GHz radar with a narrow beam that handles coal dust better than older 26 GHz units.
Ultrasonic is cost-effective for sumps and tanks where foam isn’t an issue.
Nuclear level switches still have their place in the nastiest applications where nothing else survives, but they’re increasingly being replaced by guided wave radar or capacitance switches.
Pressure measurement
Differential pressure transmitters monitor filter press performance and pump discharge pressures. In slurry service, diaphragm seals are essential to protect the transmitter from abrasive media.
For gauge pressure applications like pump discharge monitoring, standard transmitters with appropriate seals work well. The key is material selection for the wetted parts.
Control systems
Most modern CHPPs use either a DCS (Distributed Control System) or PLC (Programmable Logic Controller) architecture. For automation products and control systems, the major platforms are:

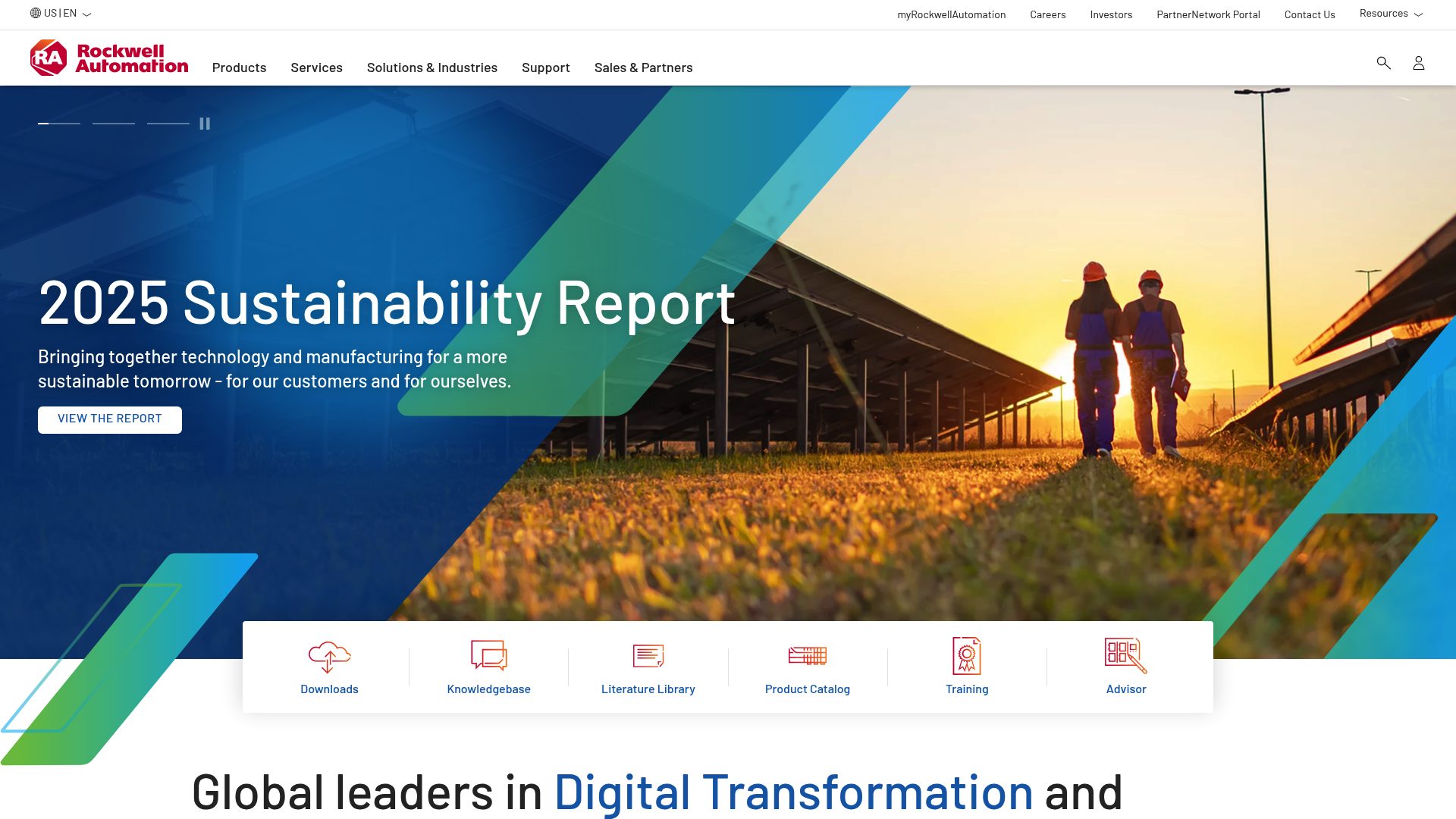

Rockwell ControlLogix/CompactLogix – The 5580 and 5380 series are widely used in Australian mining. Studio 5000 Logix Designer provides a common programming environment across the platform.
Source: https://www.rockwellautomation.com/en-au/products/hardware/programmable-controllers.html
Siemens S7 – The S7-1500 series integrates well with Siemens instrumentation via TIA Portal.
Schneider Modicon – An alternative that some sites prefer for specific applications.
Communication protocols have largely standardized on Ethernet/IP, though you’ll still find Modbus RTU and Profibus on older plants. Modern plants are moving toward EtherNet/IP for everything, with HART-over-Ethernet for instrumentation diagnostics.
For a detailed comparison of PLC platforms for mining, see our Rockwell vs Siemens vs Schneider guide.
Rapid breakdown response strategies
Breakdowns don’t happen on schedule. They happen Sunday at 2 AM during cyclone season when your usual suppliers are closed. Here’s how to prepare.
Critical spares strategy
You can’t hold everything on-site, but you should hold the things that fail most often and take longest to source. For CHPPs, we recommend keeping:
- One spare mag meter transmitter (compatible with your most common sensor size)
- Pressure transmitter diaphragm seal assemblies for your critical measurements
- Common PLC I/O modules (the ones that seem to fail every wet season)
- Communication modules for your fieldbus infrastructure
Lead times for major vendors vary. Rockwell and Siemens both have Australian distribution, but specific part numbers can still take 4-8 weeks if not in local stock. Endress+Hauser has good Australian presence but specialised mining-specified instruments may need to come from Europe.
Emergency sourcing options
Local Mackay and Gladstone suppliers can often help with same-day or next-day delivery for common items. The advantage of vendor-neutral sourcing is that when your primary brand is out of stock, we can cross-reference to an alternative that will do the job.
For example, if your Siemens mag meter fails and there’s no local stock, a Krohne or Endress+Hauser unit with the same liner material and electrode configuration can often be substituted with minimal piping changes.
Temporary measurement solutions

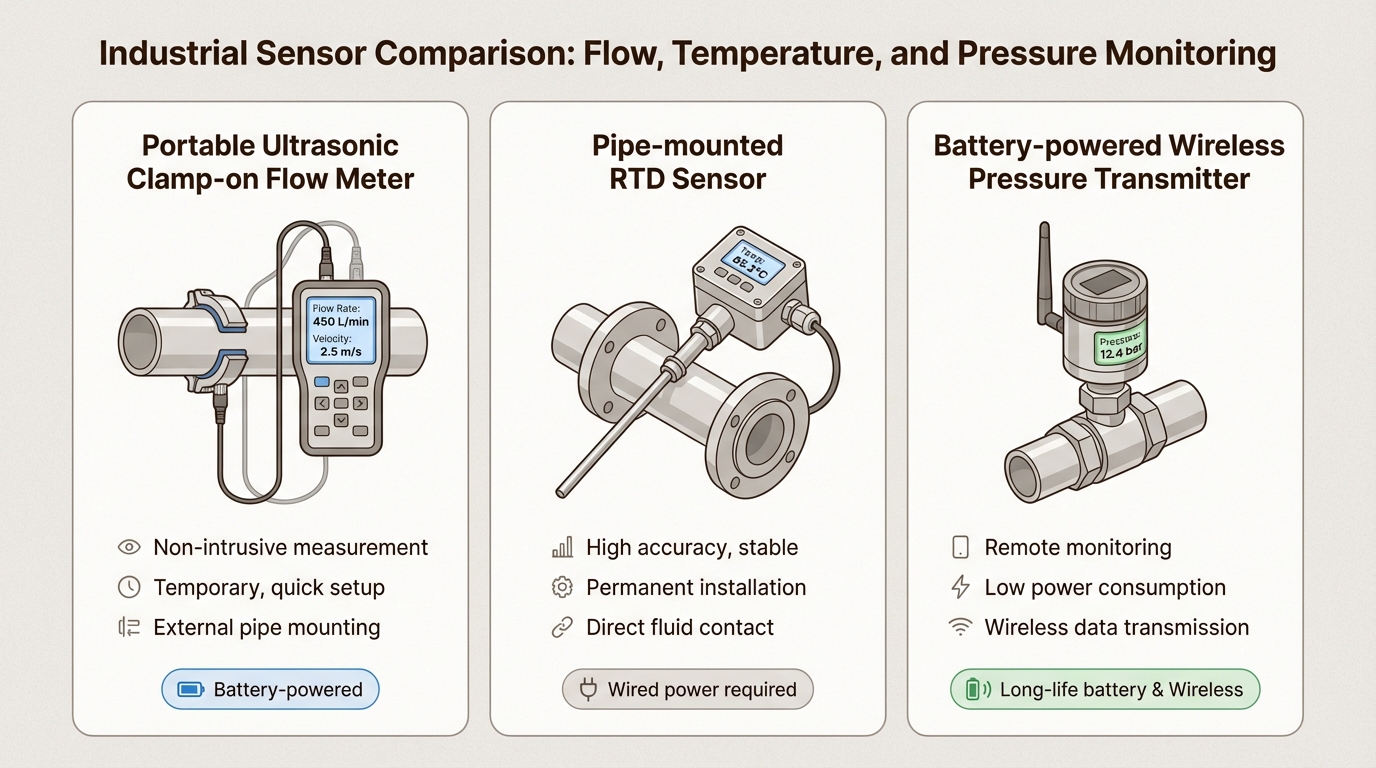

Sometimes you need to keep running while you wait for the proper fix. Portable options include:
- Portable ultrasonic flow meters – Clamp-on units that strap to the outside of the pipe. Accuracy is ±2-5%, but that’s enough to keep your process running.
- Clamp-on temperature sensors – RTDs with pipe clamps for temporary temperature monitoring.
- Battery-powered wireless transmitters – For temporary level or pressure monitoring where you can’t easily run cable.
These aren’t permanent solutions, but they’ll get you through to the next planned shutdown.
Documentation requirements
When you do have a breakdown, having the right documentation speeds up the fix:
- Up-to-date instrument lists with tag numbers, ranges, and part numbers
- Loop drawings showing wiring and termination details
- Calibration records so you know what “normal” looks like
- Hazardous area certifications (IECEx, ANZEx) for any replacement equipment
If your documentation is out of date, consider a drawing audit and update project during your next major shutdown. Orana Engineering has done extensive CHPP drawing management work in the Bowen Basin, including electrical drawing audits and metadata consolidation for BMA and Anglo American sites.
Automation upgrades for legacy CHPPs
Many Bowen Basin CHPPs have 20+ year old control systems. Rip-and-replace is expensive and risky. Phased upgrades let you modernise without betting the plant.
Retrofit strategies
Communication gateways bridge old and new. A Modbus-to-Ethernet/IP gateway lets you add modern PLCs while keeping existing field instruments. This is often the first step in a phased migration.
Virtualisation of legacy DCS systems extends the life of older control systems while you plan the full upgrade. The old DCS runs on modern hardware, giving you time to migrate piece by piece.
Phased upgrades by process area let you modernise the train loadout this year, the CHPP next year, and the reclaim system the year after. Each area gets the attention it needs without trying to do everything at once.
Smart instrumentation integration

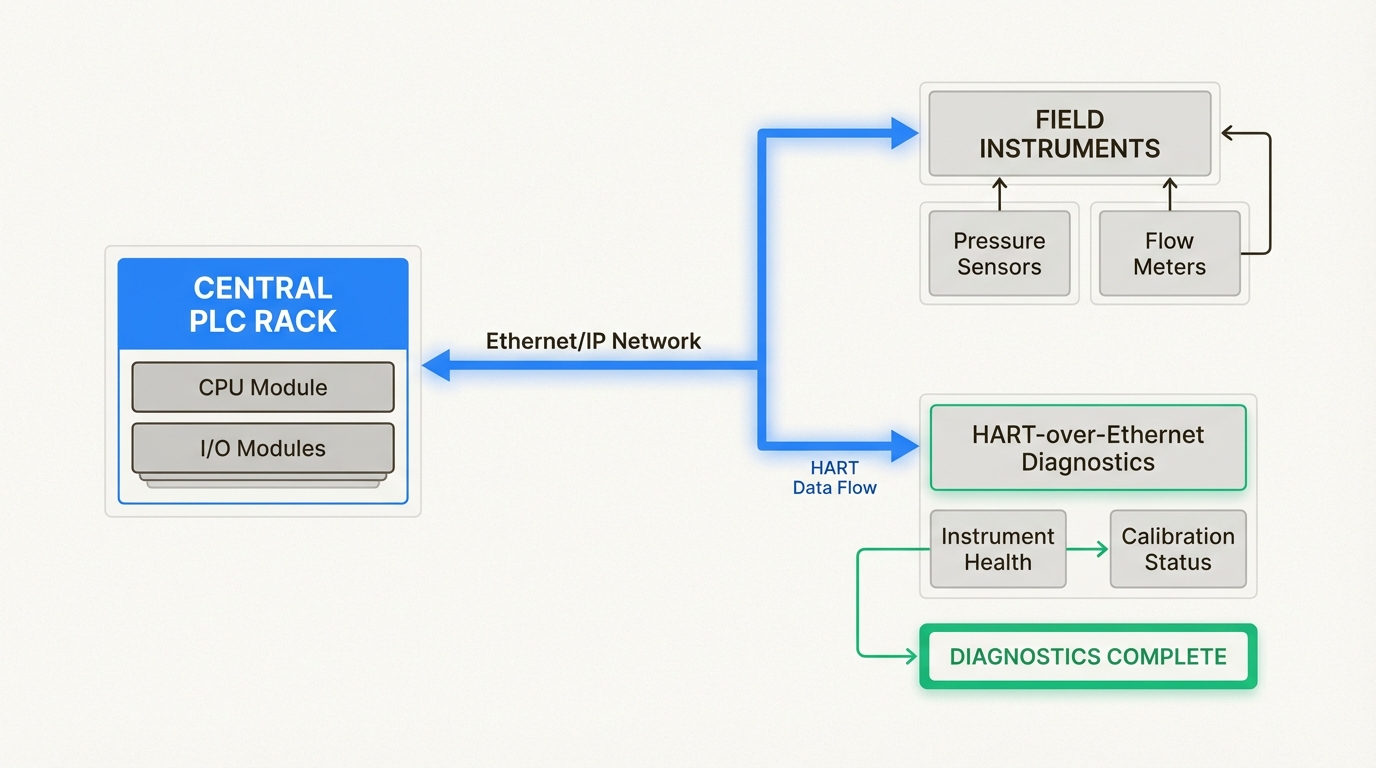

HART protocol gives you diagnostics from smart transmitters without running new cable. Most modern instruments support HART, and a HART multiplexer can bring that data into your control system.
WirelessHART is increasingly useful for hard-to-reach instruments. Instead of running cable to a remote sump or stockpile, a WirelessHART adapter transmits the signal back to the control room.
Asset management systems (AMS) collect diagnostic data from smart instruments to enable predictive maintenance. You can see which instruments are drifting before they fail.
Safety system considerations
Functional safety (SIL ratings) matters in CHPPs, particularly for emergency shutdown systems. The Rockwell Logix SIS provides SIL2 and SIL3 certified safety control, integrating with the standard ControlLogix platform.
Gas detection integration is another safety consideration. CHPPs need methane monitoring in reclaim tunnels and coal handling areas. MSA Ultima X5000 gas monitors integrate with safety PLCs to provide continuous monitoring and alarm functionality.
For more on gas detection solutions, see our MSA fixed gas and flame detection page.
Vendor-neutral sourcing: Why it matters for Bowen Basin operations
The single-vendor trap is easy to fall into. You standardize on one brand, train your people on that platform, and build your spares holding around it. Then that vendor has a supply chain issue, or discontinues a critical product, or their local support leaves something to be desired.
The single-vendor trap
Long lead times when your primary vendor is out of stock. Premium pricing because they know you have nowhere else to go. Limited flexibility when a different technology would actually work better for a specific application.
We’ve seen mines wait 12 weeks for a specific part number when a functionally equivalent alternative was available from stock locally.
Multi-vendor advantages
When you work with a vendor-neutral supplier, you get access to:
- Rockwell, Siemens, Schneider – Choose the best PLC platform for each application rather than forcing everything into one ecosystem
- Instrumentation options – Endress+Hauser, Siemens, Krohne, Yokogawa, IFM – select the right meter for each service
- Faster breakdown response – Multiple supply channels mean when one brand is out of stock, another option is available
Local support benefits
Queensland-based engineers who understand local conditions make a difference. We know what “Bowen Basin dust” actually means for sealing specifications. We understand that a 4-hour response time from Brisbane isn’t useful when you’re 400km from the airport.
Our Mackay office supports mines throughout the Northern and Southern Bowen Basin. We’re not flying in from Brisbane for site visits.
Getting breakdown support in Mackay and the Bowen Basin
When you need help at 2 AM, what should you look for in a support partner?
What to look for in a support partner
24/7 availability – Not just an answering service that takes messages. You need someone who can actually help, whether that’s technical advice over the phone or dispatching parts from local stock.
Local stock holding – A supplier with inventory in Mackay or Gladstone can have parts to your site same-day or next-day. A supplier ordering from Sydney or Melbourne can’t.
Multi-vendor capability – If your support partner only sells one brand, they’re limited in what they can offer when that brand is out of stock.
Field experience in CHPPs – Instrumentation in coal prep has specific challenges. You want someone who understands heavy media circuits, froth flotation, and train loadout systems, not just someone who knows how to configure a flow meter.
Our capabilities
At Endless Process Automation, we maintain local stock in Queensland and relationships with multiple vendors. Our team has 15+ years of field experience, including ex-Endress+Hauser engineers who’ve commissioned instrumentation at mines across the Bowen Basin.
We understand that when you call at 2 AM, you don’t want a sales pitch. You want someone who can help you get running again. That’s what we do.
Choosing the right instrumentation partner for your CHPP
Selecting a supplier isn’t just about price. It’s about who will be there when things go wrong.
Key questions to ask potential suppliers:
- What’s your typical response time for emergency breakdowns?
- Do you hold stock locally, or order from interstate/overseas?
- Can you support multiple vendor platforms, or are you limited to one brand?
- Do your engineers have field experience in CHPPs specifically?
- What’s your after-hours support process?
The answers to these questions tell you whether you’re dealing with a box-dropper or a technical partner who can actually help when you need it.
At Endless Process Automation, we focus on being the technical partner, not just the supplier. We supply and support multiple vendors because that’s what works best for our customers. We’re engineers first, salespeople second.
If you’re dealing with instrumentation challenges in your CHPP, or you want to review your spares strategy before the next breakdown happens, contact us. We’ll give you straight answers and practical solutions.
Need technical advice or a hard-to-find part? Contact Endless Process Automation for a vendor-neutral quote today.
Frequently Asked Questions
What should I look for in a Bowen Basin Mackay coal prep plant automation rapid breakdown support partner?
Look for 24/7 availability with actual technical support (not just message-taking), local stock holding in Mackay or Gladstone, multi-vendor capability so you’re not limited to one brand, and engineers with specific CHPP field experience. Ask about typical response times and after-hours processes before you need them in an emergency.
How does coal prep plant automation in the Bowen Basin differ from other mining regions?
Bowen Basin conditions include extremely fine and abrasive dust, high humidity (70%+ year-round in Gladstone/Mackay), temperature swings from 40°C+ days to cool nights, and significant vibration from crushers and screens. These factors cause specific failure modes like magnetic flow meter electrode coating, radar level false readings from dust, and pressure transmitter diaphragm damage from abrasive media.
What are the best alternatives to nuclear densitometers for CHPP density measurement?
Non-nuclear density meters like Red Meters use a patented inline deflection system to measure slurry density in real-time without radiation. They eliminate licensing, compliance paperwork, and disposal concerns while providing cloud-connected data streaming to phones and control rooms. This is particularly valuable for heavy media cyclone control and thickener underflow applications.
Which PLC platforms work best for coal prep plant automation upgrades?
The major platforms used in Australian mining are Rockwell ControlLogix/CompactLogix (5580 and 5380 series), Siemens S7, and Schneider Modicon. Rockwell’s Studio 5000 provides a common programming environment, while Siemens integrates well with SITRANS instrumentation. The best choice depends on your existing infrastructure, staff familiarity, and specific application requirements.
What critical spares should CHPPs hold on-site for rapid breakdown response?
Recommended critical spares include one spare magnetic flow meter transmitter compatible with your most common sensor size, pressure transmitter diaphragm seal assemblies for critical measurements, common PLC I/O modules (especially those prone to wet season failures), and communication modules for fieldbus infrastructure. Lead times for specialized mining-specified instruments can be 4-8 weeks, so local stock holding is essential.
How can I get temporary measurements working while waiting for permanent instrumentation repairs?
Portable ultrasonic clamp-on flow meters can provide ±2-5% accuracy for temporary flow measurement. Clamp-on temperature sensors work for pipe surface temperature monitoring. Battery-powered wireless transmitters can provide temporary level or pressure readings where running cable is difficult. These aren’t permanent solutions but will keep your process running until proper repairs can be made.
