If you’ve ever watched your batch weights drift by 2-3% between summer and winter, or had custody transfer readings disputed because “the temperature was different,” you already know the problem. Volumetric flow meters measure volume. But you care about mass. And when density shifts due to temperature, pressure, or composition changes, your inferred mass flow is wrong.
Here’s the short version: Coriolis mass flow meters measure mass directly. They also give you density and temperature from the same instrument. No compensation calculations. No assumptions. Just actual mass flow data you can trust.
At Endless Process Automation, we specify and supply Coriolis meters across Queensland’s mining, water, and energy sectors. We’ve seen what works in Pilbara dust, Gladstone humidity, and Bowen Basin heat. This guide cuts through the marketing claims and explains what you actually need to know.
How Coriolis flow meters actually work

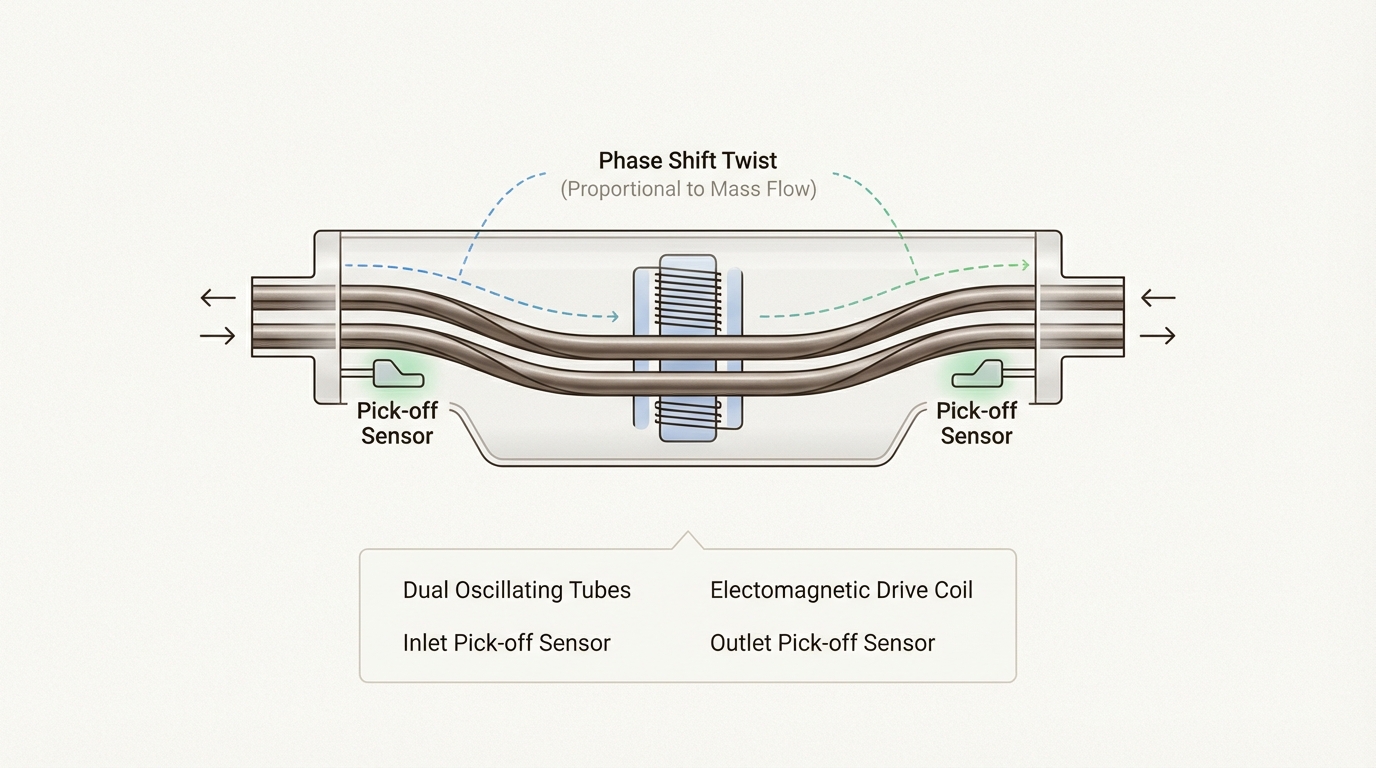

A Coriolis meter works by vibrating one or more tubes at their natural frequency. When fluid flows through these vibrating tubes, the Coriolis effect (yes, the same physics that makes cyclones spin) causes a phase shift or “twist” in the tube vibration. Sensors at the inlet and outlet detect this phase difference, which is directly proportional to mass flow rate.
Here’s the clever part: the tube’s vibration frequency changes with fluid density. Higher density fluid slows the vibration; lower density speeds it up. So from the same measurement, you get both mass flow and density. An integrated RTD gives you temperature. Three process variables from one device with no moving parts.

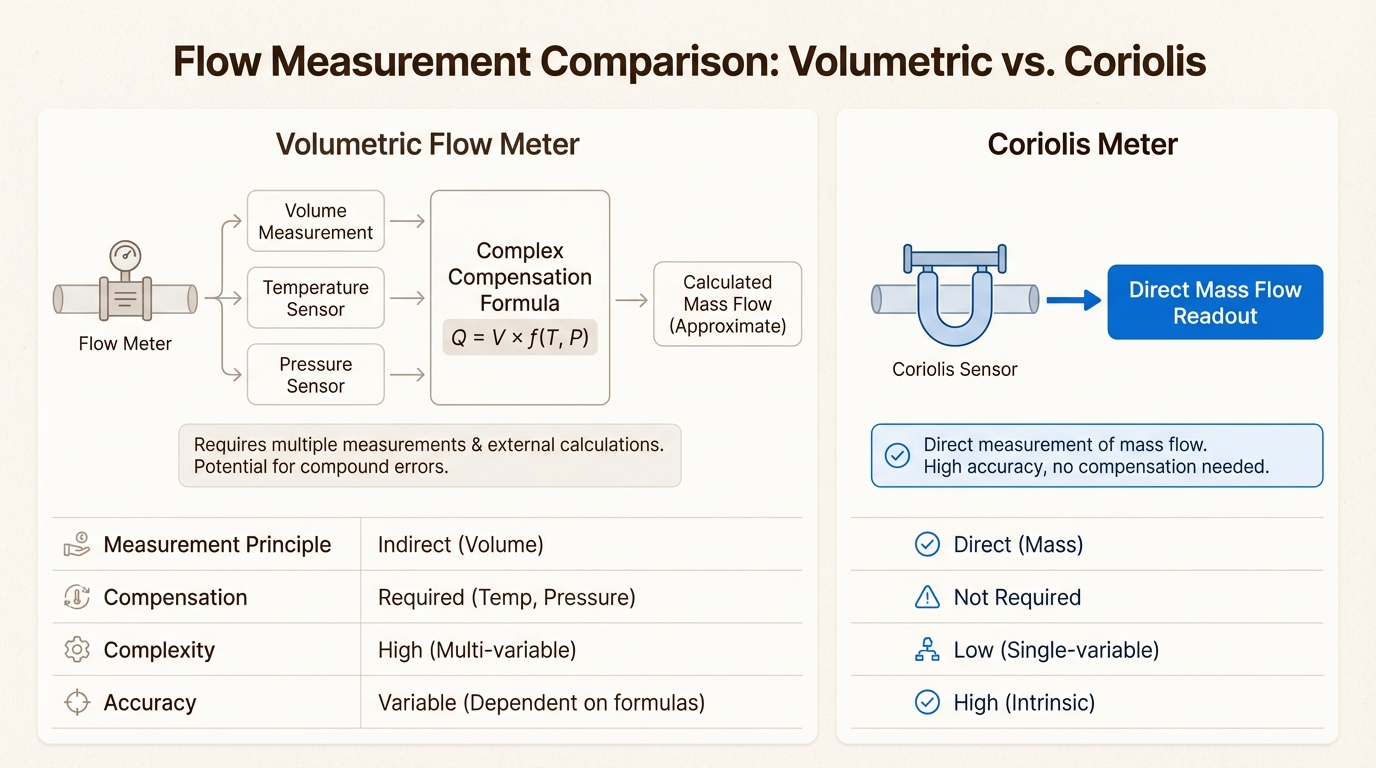

The direct measurement approach eliminates the errors that plague volumetric technologies. With an orifice plate or magnetic flow meter, you’re measuring velocity and calculating mass using an assumed or separately measured density. If that density assumption is off by 5%, your mass flow is off by 5%. Coriolis doesn’t care about density assumptions. It measures the actual mass.
This matters for applications like batching, blending, and custody transfer where mass balance is critical. It also matters for quality control when you use the density output to infer concentration or detect off-spec product. Endress+Hauser describes Coriolis as a direct method for measuring mass with typical accuracy of ±0.1%, with premium options reaching ±0.05%.
For more on density measurement applications, see our density measurement solutions.
Top-tier Coriolis meter vendors: Who makes the cut
Not all Coriolis meters are created equal. After 15+ years in the field, we’ve seen which units hold up and which ones become maintenance headaches. Here are the vendors we regularly specify and support.
Emerson Micro Motion – The reference standard
Emerson Micro Motion is widely considered the benchmark for Coriolis technology. Their ELITE series sensors paired with the 5700 or 4700 transmitters offer accuracy down to ±0.05% in premium configurations.
What sets Emerson apart is the depth of their diagnostics. Smart Meter Verification can check meter health without stopping the process. Advanced Phase Measurement handles entrained gas better than most competitors. The installed base is massive, which means spare parts availability and technician familiarity almost anywhere in Australia.
The trade-off? You’ll pay for it. Micro Motion units sit at the premium end of the price spectrum. But for custody transfer, critical batching, or applications where measurement uncertainty has real financial impact, they’re often the right choice.
For more on Emerson’s broader instrumentation portfolio in Australia, read our Emerson instrumentation guide.
Endress+Hauser Proline Promass – The precision specialist
Endress+Hauser’s Promass series, particularly the F 300, delivers ±0.05% accuracy with PremiumCal calibration. The Proline transmitter family offers consistent operation across their entire flow portfolio, which simplifies training and spare parts if you standardise on E+H.
Where Endress+Hauser excels is in hygienic applications and extreme temperatures. The Promass F handles process temperatures from -50°C to +205°C. The hygienic designs with EHEDG and 3A approvals are well-suited to food and pharmaceutical applications. Heartbeat Technology provides continuous self-diagnosis without interrupting measurement.
From a support perspective, Endress+Hauser has strong Australian presence with local calibration facilities. We’ve found their technical documentation and application support to be among the best in the industry.
KROHNE OPTIMASS – The tough conditions expert
KROHNE’s OPTIMASS series doesn’t get the same brand recognition as Emerson or E+H in Australia, but it’s a serious contender, particularly for demanding applications.
The OPTIMASS 6400 offers ±0.05% flat accuracy across a remarkable -200°C to +400°C temperature range. The dual straight-tube design handles slurries and viscous fluids better than curved-tube alternatives. We’ve had success with OPTIMASS units in mining slurry applications where other meters failed due to erosion or coating.
KROHNE’s Entrained Gas Management (EGM) is genuinely impressive. While no Coriolis meter loves two-phase flow, the OPTIMASS maintains measurement through brief gas entrainment events that would throw other meters into fault mode.
Yokogawa ROTAMASS – The Asia-Pacific favourite
Yokogawa’s ROTAMASS Total Insight series publishes clear accuracy specifications: up to ±0.1% for liquids and ±0.35% for gases. The “Total Insight” approach provides extensive diagnostic data and predictive maintenance indicators.
Yokogawa has strong presence in Australian petrochemical and LNG facilities. The ROTAMASS benefits from Yokogawa’s broader automation ecosystem if you’re already running their DCS or field instruments. Local support is solid, with Australian offices and technicians who understand local conditions.
Siemens SITRANS FC – The integration champion
Siemens SITRANS FC meters make the most sense when you’re already committed to Siemens automation infrastructure. The integration with SIMATIC PLCs and PCS 7 DCS is seamless. You get pre-configured function blocks, consistent parameter structures, and unified asset management through SIMATIC PDM.
Accuracy is typically ±0.1% for the higher-end models. While Siemens doesn’t match the absolute precision of Emerson or E+H’s premium offerings, the TCO advantage comes from reduced engineering hours during commissioning and consistent spare parts strategy across your plant.
For more on Siemens automation products, see our Siemens PLC controller selection guide.
When Coriolis meters fail (and how to avoid it)
Coriolis meters are accurate when properly applied. They’re also expensive and unforgiving when misapplied. Here are the failure modes we see in the field.
Two-phase flow and entrained gas. This is the big one. Coriolis meters measure the vibration characteristics of the fluid-filled tube. When gas bubbles enter the flow stream, the vibration pattern changes unpredictably. The meter may read high, low, or fault out entirely depending on the gas void fraction.
If your process has chronic entrained gas issues (pump cavitation, flashing, certain chemical reactions), Coriolis may not be the right technology. For occasional gas events during startup or upset conditions, look for meters with advanced two-phase algorithms like KROHNE EGM or Emerson’s Advanced Phase Measurement.

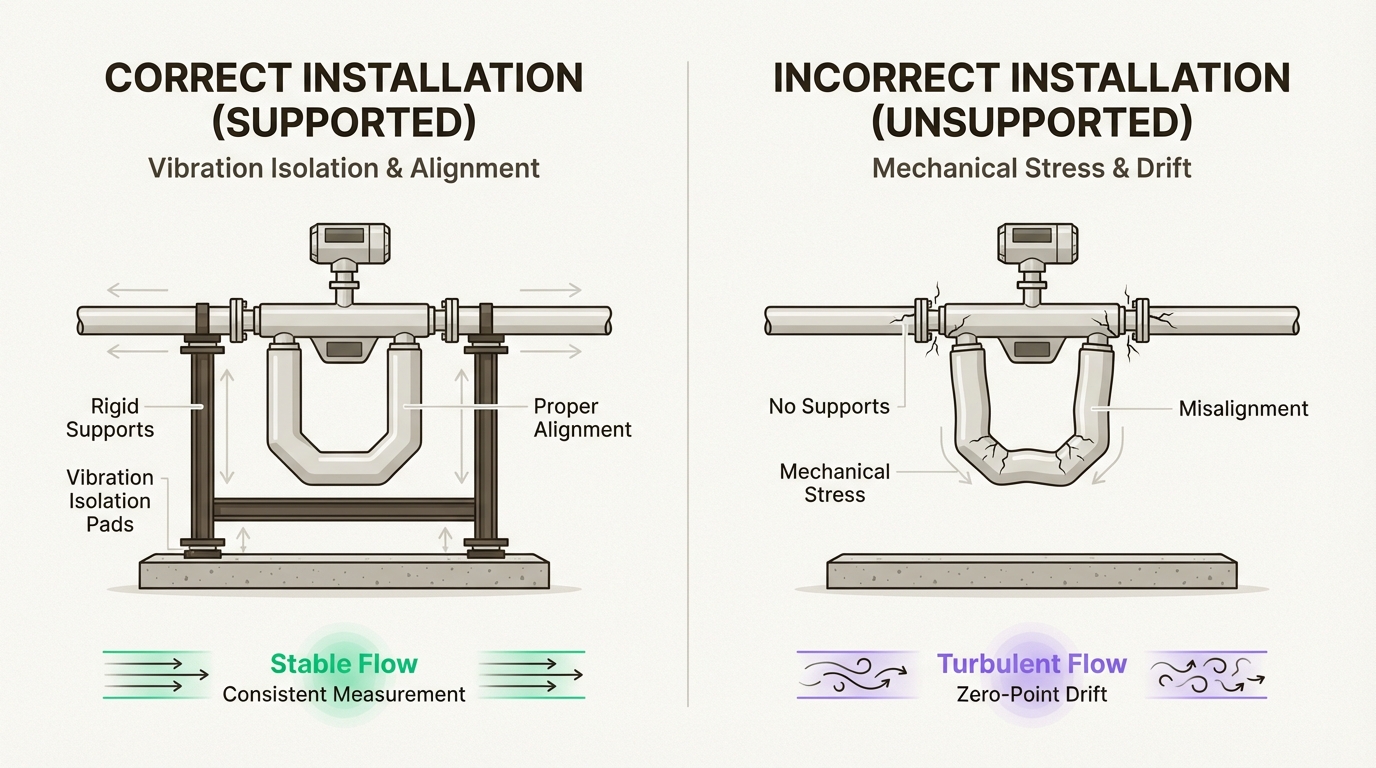

Mounting stress and vibration. Coriolis meters are sensitive to external vibration and piping stress. Mounting the sensor directly on a pump skid or near rotating equipment without proper isolation is asking for drift. The zero point shifts with mechanical stress, and you’ll chase calibration issues that aren’t actually calibration issues.
In Queensland’s mining environments, we’ve seen vibration from nearby crushers cause erratic readings. Proper support and isolation are critical. Follow the manufacturer’s mounting guidelines exactly. Don’t guess.
Temperature cycling and heat. Extreme temperature swings affect tube stiffness, which affects the calibration. While Coriolis meters compensate for process temperature, rapid thermal cycling can cause temporary drift until the tube reaches thermal equilibrium.
In Australian conditions, this matters for outdoor installations. A meter exposed to direct sun can see housing temperatures 20-30°C above ambient. UV degradation of transmitter housings is real. Specify UV-resistant materials or sun shields for exposed installations.
Coating and fouling. Viscous or sticky fluids can coat the inside of the tubes, changing their mass and stiffness. This shows up as density drift over time. If your process fluid tends to polymerise or crystallise, plan for regular cleaning cycles or consider a different technology.
Dust and ingress. In Pilbara iron ore or Bowen Basin coal operations, dust is a constant. IP ratings matter. We’ve seen transmitter electronics fail due to dust ingress through cable glands that weren’t properly sealed. Use the right cable glands. Maintain the seals.
For more on flow measurement best practices in mining environments, see our flow measurement guide.
Selecting the right meter for your application

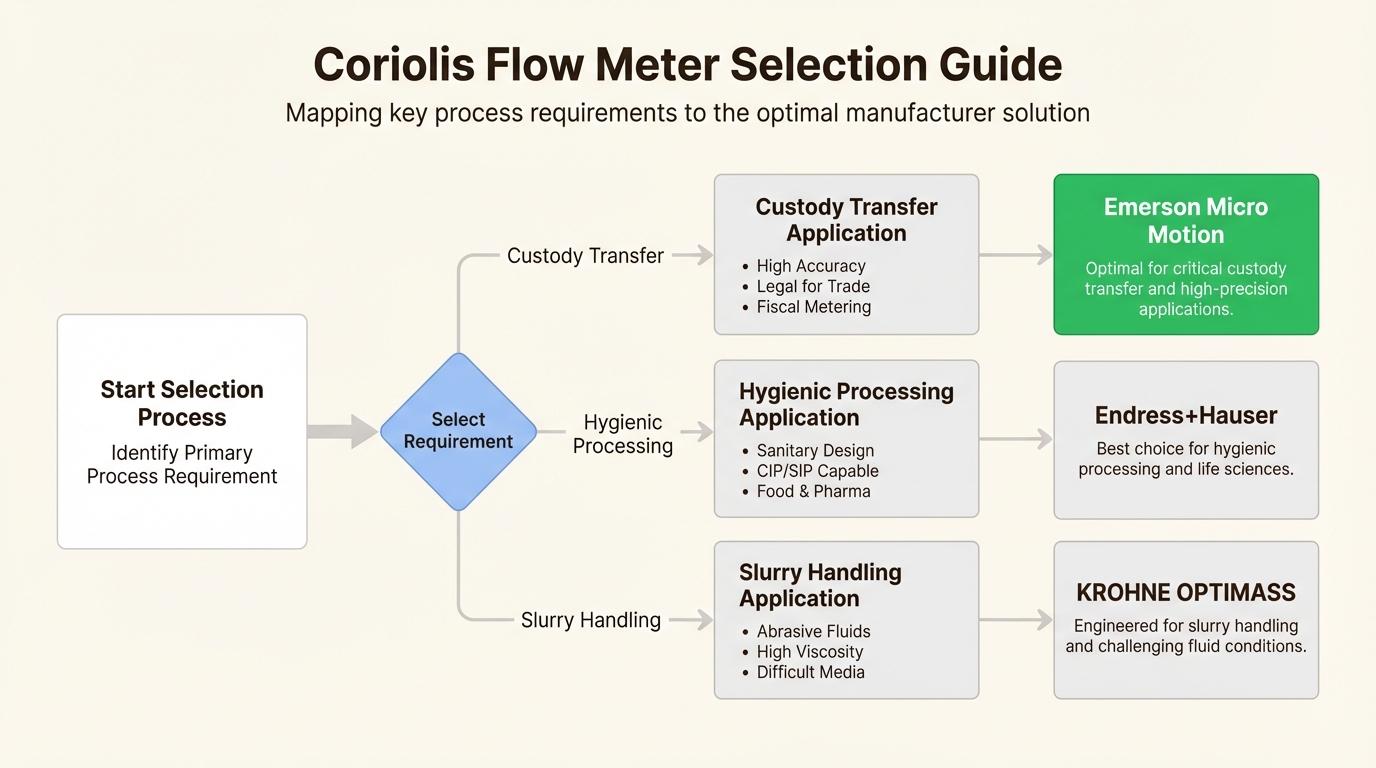

Choosing a Coriolis meter isn’t about picking the most accurate or the cheapest. It’s about matching the meter’s capabilities to your process realities. Here’s the framework we use.
Define your process envelope first. Document minimum, normal, and maximum flow rates. Know your fluid properties: density range, viscosity, temperature, pressure, and any corrosive or abrasive characteristics. Identify any two-phase flow risk. Be honest about startup and upset conditions, not just steady-state operation.
Accuracy requirements. Do you need instantaneous rate accuracy for control? Repeatability for batching? Totalized accuracy for custody transfer? The accuracy specification you care about determines the calibration option you need. Don’t pay for ±0.05% PremiumCal if ±0.1% standard calibration meets your needs.
Material compatibility. Most Coriolis meters offer 316L stainless steel as standard. For corrosive fluids, you may need Hastelloy C-22, titanium, or tantalum wetted parts. Verify compatibility with your process fluid and any cleaning chemicals used for CIP/SIP cycles.
Integration requirements. Confirm your communication protocol needs: HART, Modbus, Foundation Fieldbus, Profibus, or 4-20mA. Check hazardous area requirements (ANZEx certifications for Australian sites). Consider whether you need remote electronics for high-temperature or high-vibration installations.
Total cost of ownership. The purchase price is just the beginning. Factor in installation costs (these meters are heavy and may need pipe support modifications), commissioning and calibration, spare parts inventory, and maintenance over the 10-15 year life of the meter.
| Vendor | Key Series | Accuracy | Temperature Range | Best For |
|---|---|---|---|---|
| Emerson | Micro Motion ELITE | ±0.05% | -240°C to +350°C | Custody transfer, critical batching |
| Endress+Hauser | Promass F 300 | ±0.05% | -50°C to +205°C | Hygienic, chemical, food |
| KROHNE | OPTIMASS 6400 | ±0.05% | -200°C to +400°C | Extreme temps, slurries |
| Yokogawa | ROTAMASS TI | ±0.1% | -200°C to +200°C | Petrochemical, LNG |
| Siemens | SITRANS FC | ±0.1% | -40°C to +180°C | Siemens automation integration |
How Endless Process Automation helps you get it right
We don’t just sell Coriolis meters. We engineer flow measurement solutions that work in Australian conditions.
Vendor neutrality. We supply and support Emerson, Endress+Hauser, KROHNE, Siemens, and Yokogawa. That means we recommend what fits your application, not what we have in stock.
Application engineering. Our team has 15+ years of field experience, including ex-Endress+Hauser engineers who’ve sized and commissioned hundreds of Coriolis installations. We know the questions to ask and the pitfalls to avoid.
Australian conditions expertise. We understand what works in Queensland heat, Gladstone humidity, and Pilbara dust. We specify the right IP ratings, housing materials, and installation practices for local conditions.
Integration support. We don’t just drop a meter on your doorstep. We help with DCS/PLC integration, configuration, commissioning, and training. We can also supply the automation infrastructure around the meter: PLCs, barriers, power supplies, and panel solutions.
Stock and availability. With locations in Narangba, Gladstone, and Mackay, we carry local inventory and can source fast when lead times are tight. If your preferred brand has a 12-week lead time, we’ll suggest alternatives that can meet your schedule.
Alternative solutions. Sometimes Coriolis isn’t the right answer. If your application doesn’t justify the cost, or if two-phase flow makes Coriolis unsuitable, we’ll recommend magnetic flow meters, ultrasonic, or other technologies that better fit your needs.
Learn more about Endless Process Automation and how we support Queensland industry.
Frequently Asked Questions
Can a Coriolis flow meter measure density as well as mass flow?
Yes. Coriolis meters measure mass flow directly and density indirectly from the tube vibration frequency. Temperature is measured via an integrated RTD. You get three process variables from one instrument.
What accuracy can I expect from a Coriolis flow meter in real industrial conditions?
Premium Coriolis meters offer ±0.05% to ±0.1% mass flow accuracy under reference conditions. Real-world accuracy depends on proper sizing, installation, and process stability. Two-phase flow, vibration, and mounting stress can degrade performance.
Which Coriolis meter vendor is best for Australian mining applications?
It depends on your specific conditions. Emerson Micro Motion leads for custody transfer and critical applications. KROHNE OPTIMASS excels in slurry and extreme temperature applications common in mining. Endress+Hauser offers strong support and hygienic options for processing facilities.
How do Coriolis flow meters handle entrained gas or two-phase flow?
Standard Coriolis meters struggle with two-phase flow and may fault or read erratically. Some advanced models (KROHNE EGM, Emerson Advanced Phase Measurement) can maintain measurement through brief gas entrainment. For chronic two-phase conditions, consider alternative technologies.
What maintenance do Coriolis flow meters require?
Coriolis meters have no moving parts and require minimal maintenance. Typical activities include periodic zero verification, checking mounting supports and isolation, and verifying cable gland seals. Smart Meter Verification diagnostics can reduce the need for physical proving.
Can Endless Process Automation help with Coriolis meter selection and integration?
Yes. We provide vendor-neutral specification assistance, application engineering, integration support, and local stock across Emerson, Endress+Hauser, KROHNE, Siemens, and Yokogawa product lines. We understand Australian conditions and can recommend the right solution for your specific application.
