If you are still relying on mechanical flow meters in your process plant, you already know the headaches. Wear parts that need replacing every 12 months. Bearings that seize up in Gladstone’s humidity. Calibration drift that has your maintenance team out in the Pilbara heat twice a month. There is a reason electromagnetic flowmeters have become the standard for water, wastewater, and chemical applications across Australian industry. They have no moving parts, they handle slurries without clogging, and they measure bi-directional flow with accuracy that mechanical meters simply cannot match.
At Endless Process Automation, we specify and source electromagnetic flowmeters from all the major manufacturers. We are not tied to any single brand, which means we can recommend the right meter for your specific application, whether that is a Siemens SITRANS for a water treatment plant or an Endress+Hauser Promag for a hygienic food application. Let us break down how these meters work, where they excel, and what you need to watch out for when specifying one for Australian conditions.
Why your flow measurements might be failing
Mechanical flow meters, turbine meters, and positive displacement meters all share a common weakness: they have parts that move. In the Bowen Basin, where summer temperatures regularly exceed 50°C, those moving parts expand, contract, and wear. In Gladstone, where humidity hangs at 90% for months, bearings corrode. The result is predictable. Drifting accuracy, unplanned maintenance shutdowns, and the nagging suspicion that your flow totals are not quite right.
Electromagnetic flowmeters solve this by eliminating the mechanics entirely. Inside the meter body, there are no bearings, no rotors, and no vanes. Just a smooth tube with electrodes and a magnetic field. Nothing to wear out. Nothing to jam. Nothing to replace every year.
The accuracy is another selling point. A good mechanical meter might give you ±1% to ±2% accuracy when new. An electromagnetic flowmeter delivers ±0.5% or better, and that accuracy stays stable for years because there are no wearing parts to degrade performance. For custody transfer applications, where you are billing based on flow totals, that accuracy difference translates directly to revenue.
Bi-directional measurement is another advantage that gets overlooked. If your process involves batching, back-flushing, or any flow that reverses direction, a mechanical meter typically requires two sensors installed facing opposite directions. A mag meter measures flow in either direction with the same sensor, simplifying your installation and reducing costs.
How electromagnetic flowmeters actually work

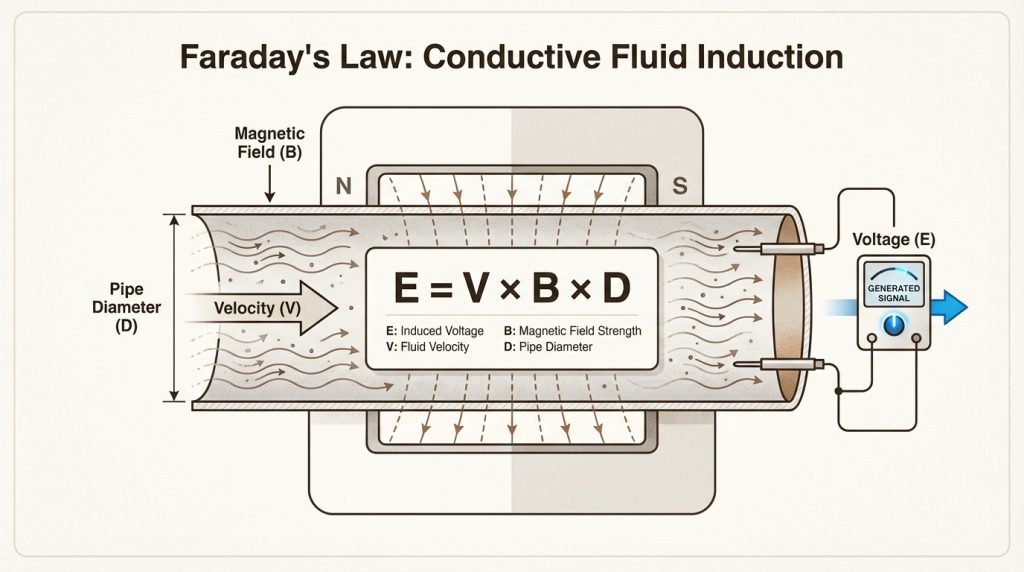

The operating principle is Faraday’s Law of Electromagnetic Induction. When a conductive fluid moves through a magnetic field, it generates a voltage proportional to its velocity. The faster the flow, the higher the voltage. Measure that voltage, and you know the flow rate.
Here is what happens inside the meter. Coils around the flow tube generate a magnetic field perpendicular to the flow direction. As the conductive fluid passes through this field, electrodes positioned on opposite sides of the tube pick up the induced voltage. The transmitter converts this voltage signal into a standard output: typically 4-20mA, pulse, or a digital protocol like HART or Modbus.
The formula is straightforward: E is proportional to V × B × D, where E is the induced voltage, V is the fluid velocity, B is the magnetic field strength, and D is the distance between the electrodes (essentially the pipe diameter). Because B and D are constants for a given meter, the voltage E is directly proportional to velocity V.
The critical requirement is conductivity. The fluid must be electrically conductive for the principle to work. The minimum is typically 5 microSiemens per centimeter (μS/cm). Most water-based fluids easily meet this. Clean water is around 50 μS/cm. Wastewater can be thousands. But hydrocarbons, distilled water, and most oils have essentially zero conductivity and cannot be measured with a mag meter. For those applications, you will need a different technology.
The obstruction-free design means the pressure drop across a mag meter is minimal. The flow tube is the same diameter as your pipe, with no restrictions. This matters in low-pressure systems where every millibar counts, and it eliminates the clogging issues you get with orifice plates or mechanical meters in slurry service.
Where mag meters excel in Australian applications
Water and wastewater
This is the classic mag meter application. Water utilities across Queensland and New South Wales have standardized on electromagnetic flowmeters for everything from raw water intake to treated water distribution.
Custody transfer is another key use case. When water is bought and sold, measurement accuracy has financial implications. Meters with OIML R49 and MID MI-001 approvals, like the WIKA FLC-2300, meet the legal requirements for billing-grade measurement.
Mining and slurry applications
Mining operations in the Pilbara and Bowen Basin deal with abrasive slurries that destroy mechanical meters in weeks. These mags are designed specifically for this, with a high-powered magnetic field that delivers stable measurement even in heavy mining slurries and paper stock above 3% solids.
The key is selecting the right liner and electrode materials. Hard rubber or polyurethane liners withstand abrasion. Hastelloy or titanium electrodes resist corrosion from process chemicals. Get the material selection wrong, and you will be replacing the meter in months. Get it right, and the meter will outlast the process line.
Chemical and pharmaceutical
Chemical plants need meters that handle aggressive media and meet hazardous area requirements. The special flow tubes handles temperatures to 150°C and carries IECEx approvals for explosive atmospheres. Integrated grounding electrodes eliminate the need for separate grounding rings in many installations, saving material and labor costs.
Food and beverage
Hygienic applications require smooth, cleanable surfaces and approvals like 3A or EHEDG. Hygienic connections for CIP (Clean In Place) and SIP (Steam In Place) cleaning cycles. The stainless steel construction and polished surfaces meet food safety standards while maintaining the accuracy and reliability expected from mag meter technology.
Inline vs insertion: Choosing the right design
Inline (full-bore) electromagnetic flowmeters
Inline mag meters, also called full-bore meters, have a flow tube that matches your pipe diameter. The magnetic field extends across the entire cross-section, measuring the average velocity of the full flow profile. This yields the highest accuracy, typically ±0.5% or better.
The trade-off is size and cost. For large pipe diameters (above 300mm), an inline meter becomes expensive and heavy. You also need straight pipe runs upstream and downstream to ensure a fully developed flow profile. The typical recommendation is 5 to 10 pipe diameters upstream and 1 to 2 diameters downstream, though this varies by manufacturer and application.
Inline meters are the right choice when accuracy matters, when the pipe size is manageable (up to DN200), and when you have the space for proper straight runs.
Insertion electromagnetic flowmeters
Insertion meters use a probe that extends into the flow stream. The magnetic field is generated at the probe tip, measuring velocity at a single point. The flow rate is calculated based on this point measurement and the pipe diameter.
Accuracy is lower, typically 0.5% to 1%, but the benefits are significant for large pipes. Installation is simpler and can often be done with a hot-tap, meaning you do not need to shut down the process. Cost scales more favorably for large diameters. And because you are only inserting a small probe, weight and handling are not issues even at DN1000 and above.
Insertion meters are ideal for large pipe retrofits, temporary measurements, and applications where ±1% accuracy is acceptable.
Specifications that matter in Australian conditions
When specifying an electromagnetic flowmeter for Australian industrial conditions, these are the numbers that actually matter:
| Specification | Typical Range | Notes |
|---|---|---|
| Accuracy | ±0.2% to ±0.5% | Premium transmitters deliver 0.2% |
| Minimum conductivity | ≥5 μS/cm | Some insertion types require 20 μS/cm |
| Temperature range | -20°C to 180°C | Liner dependent; PTFE handles higher temps than rubber |
| Pressure rating | Up to 40 bar | Check flange ratings for your application |
| Ambient temperature | -20°C to 60°C | Ensure 50°C+ rating for Pilbara/Bowen Basin installations |
| Outputs | 4-20mA, pulse, HART, Modbus | Match to your control system |
| Approvals | IECEx, ATEX, OIML R49 | Required for hazardous areas and custody transfer |
Liner materials
The liner protects the meter body from the process fluid and provides electrical insulation. Common options include:
- Hard rubber / Ebonite: General water applications, economical, good for temperatures up to 60°C
- Soft rubber / NBR: Better for abrasive slurries
- PTFE (Teflon): Chemical resistance, higher temperatures to 130°C, higher cost
- PFA: Similar to PTFE but better for vacuum applications
- Polyurethane: Mining slurries, highly abrasive applications
Electrode materials
- 316L stainless steel: General purpose, water applications
- Hastelloy C: Chemical resistance, chlorides
- Titanium: Seawater, chlorine dioxide
- Tantalum: Strong acids
- Platinum-iridium: Ultimate corrosion resistance, high cost
Common failure modes and how to avoid them
Even though mag meters have no moving parts, they can still fail if specified or installed incorrectly. Here are the problems we see in the field:
Grounding issues
Magnetic flow sensors are sensitive to electrical noise. In plastic piping systems, the fluid carries static electricity that must be grounded for accurate measurement. Most modern meters include grounding electrodes or grounding rings to handle this. Skip the grounding, and you will get erratic readings that drift with humidity and flow conditions.
Air bubbles
Mag meters cannot distinguish between process fluid and air. An air bubble passing the electrodes will cause a spike in the reading. The solution is proper installation orientation. Mount the sensor at a 45 to 135 degree angle to ensure the pipe stays full, or install in a vertical pipe with flow running upward.
Liner separation
Some flow tube designs use separate liners that can separate from the meter body over time, especially with thermal cycling or vacuum conditions. Fusion-bonded epoxy liners, like those used in the Siemens Ultra Mag, avoid this issue entirely. For critical applications, specify a meter with a bonded liner or verify the liner attachment method.
Electrode coating
In applications with fatty or oily fluids, electrodes can become coated, insulating them from the process and causing signal loss. Regular cleaning may be required, or specify a meter with electrode cleaning features. Some transmitters can detect coating buildup and alert operators before measurement is affected.
Conductivity variations
If your process fluid conductivity varies (for example, with chemical dosing or temperature changes), measurement accuracy can suffer. Ensure the minimum conductivity is maintained under all operating conditions, or consider a different flow technology.
The Endless Process Automation advantage
We are not salespeople first. We are engineers who have done the hard yards in the field, and we understand the pain of specifying the wrong meter and dealing with the consequences for the next ten years.
That is why we take a vendor-neutral approach. We can source electromagnetic flowmeters from Siemens, Endress+Hauser, Yokogawa, Emerson Rosemount, WIKA, Bürkert, and other major manufacturers. We are not pushing whatever happens to be in stock. We recommend the meter that actually fits your application, your budget, and your timeline.
Our Queensland-based team understands local conditions. We know that a meter specified for a European water treatment plant may not survive a Pilbara summer. We factor in ambient temperature, UV exposure, humidity, and dust ingress when making recommendations. And because we have relationships with multiple suppliers, we can often source hard-to-find specifications or meet urgent delivery requirements that single-brand distributors cannot.
If your current flow measurements are drifting, your maintenance costs are climbing, or you are specifying a new installation and want to get it right the first time, we can help. We provide technical advice, vendor-neutral quotes, and ongoing support for the life of the installation.
Need technical advice or a hard-to-find part? Contact Endless Process Automation for a vendor-neutral quote today.
Frequently Asked Questions
What is the minimum conductivity required for an electromagnetic flowmeter Australia installation?
Most electromagnetic flowmeters require a minimum fluid conductivity of 5 μS/cm. Some insertion-style meters require 20 μS/cm or higher. Clean water is typically around 50 μS/cm, so most water-based applications easily meet this threshold. However, hydrocarbons, distilled water, and oils have essentially zero conductivity and cannot be measured with mag meters.
Can an electromagnetic flowmeter Australia handle slurry applications in mining?
Yes, but you need the right specification. For abrasive mining slurries, specify hard rubber or polyurethane liners and consider high-powered magnetic flowmeters like the Siemens SITRANS FM TRANSMAG 2, which is specifically designed for heavy slurries and paper stock above 3% solids. Hastelloy or titanium electrodes resist corrosion from process chemicals.
What approvals do I need for an electromagnetic flowmeter Australia custody transfer application?
For billing-grade measurement in Australia, look for meters with OIML R49 and MID MI-001 approvals. These certifications ensure the meter meets legal requirements for custody transfer. The WIKA FLC-2300 and Siemens SITRANS FM MAG 5100 W both carry these approvals and are commonly used in water utility applications.
How much straight pipe run does an electromagnetic flowmeter Australia installation require?
Inline mag meters typically require 5 to 10 pipe diameters of straight run upstream and 1 to 2 diameters downstream. Insertion meters generally need more: 10 diameters upstream and 5 downstream. Some modern designs, like the WIKA FLC-2300 with its conical profile, claim no upstream or downstream runs are required, but following standard recommendations is still good practice.
Can electromagnetic flowmeters handle the high ambient temperatures in Australian mining regions?
Yes, but verify the specifications. Standard mag meters are rated for ambient temperatures up to 60°C, which covers most applications. However, in the Pilbara or Bowen Basin where summer temperatures regularly exceed 50°C, ensure your meter has adequate margin. Also consider the transmitter enclosure rating (IP66 or IP67) for dust and water ingress protection.
What is the difference between the Siemens MAG 5000 and MAG 6000 transmitters?
The Siemens MAG 6000 delivers higher accuracy (0.2%) and includes advanced features like integrated dosing and batch control functions. The MAG 5000 delivers 0.4% accuracy and is suited for general applications where the highest precision is not required. Both use the same SensorProm technology for plug-and-play commissioning and work with all Siemens mag meter sensors.
How do I prevent air bubble interference in my electromagnetic flowmeter Australia installation?
Mount the sensor at a 45 to 135 degree angle from vertical to ensure the pipe stays full. Alternatively, install in a vertical pipe with flow running upward. Air bubbles passing the electrodes will cause reading spikes because the meter cannot distinguish between fluid and air. Proper installation orientation is the simplest and most effective solution.
