Introduction
Is your turbine flow meter seizing up every six months in the Pilbara heat? Are you tired of replacing bearings in mechanical meters that just weren’t built for 50°C ambient temperatures and dust ingress? You’re not alone. We’ve seen it countless times across Queensland’s industrial sites.
Electromagnetic flowmeters (also called mag meters or magnetic water flow meters) solve these problems by eliminating moving parts entirely. Instead of spinning turbines or oscillating pistons, they use Faraday’s Law of Electromagnetic Induction to measure flow. No bearings to wear out. No mechanical parts to jam. Just solid-state reliability that keeps working when everything else fails.
If you want the full technical breakdown of how electromagnetic flowmeters work, we’ve covered that in our electromagnetic flowmeters technical overview. This guide focuses on something different: how to select and source the right electromagnetic meter for your specific Australian application, and why working with a vendor-neutral partner matters.
At Endless Process Automation, we supply and support multiple brands including Siemens, Endress+Hauser, KROHNE, ABB, and Yokogawa. We’re not tied to any single manufacturer, which means we can recommend what actually fits your application, not what we need to move off the shelf.
Why electromagnetic flowmeters suit Australian conditions

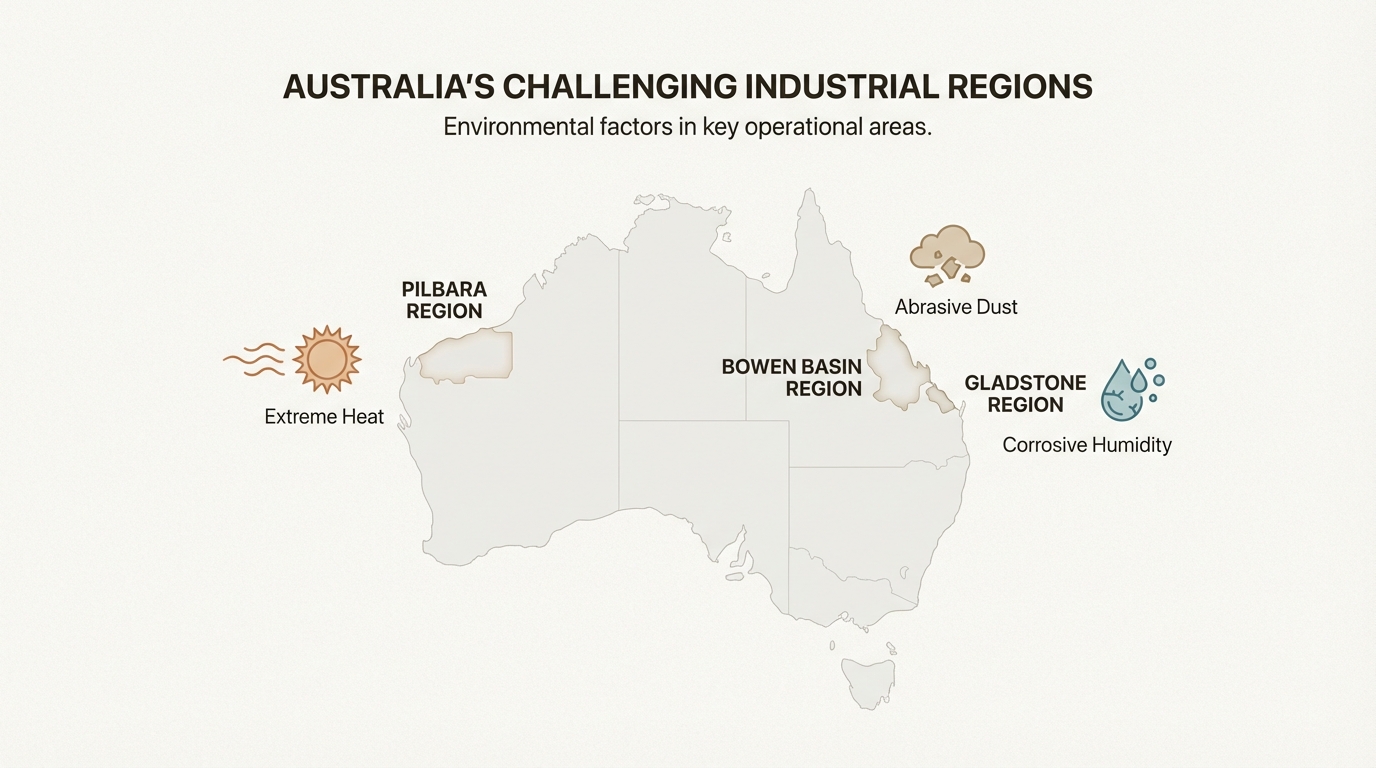

Australian industrial conditions are brutal. The Pilbara regularly hits 50°C. Gladstone’s humidity corrodes electronics. The Bowen Basin fills everything with fine dust. Standard industrial equipment often fails prematurely here.
Electromagnetic flowmeters handle these conditions better than mechanical alternatives for several reasons:

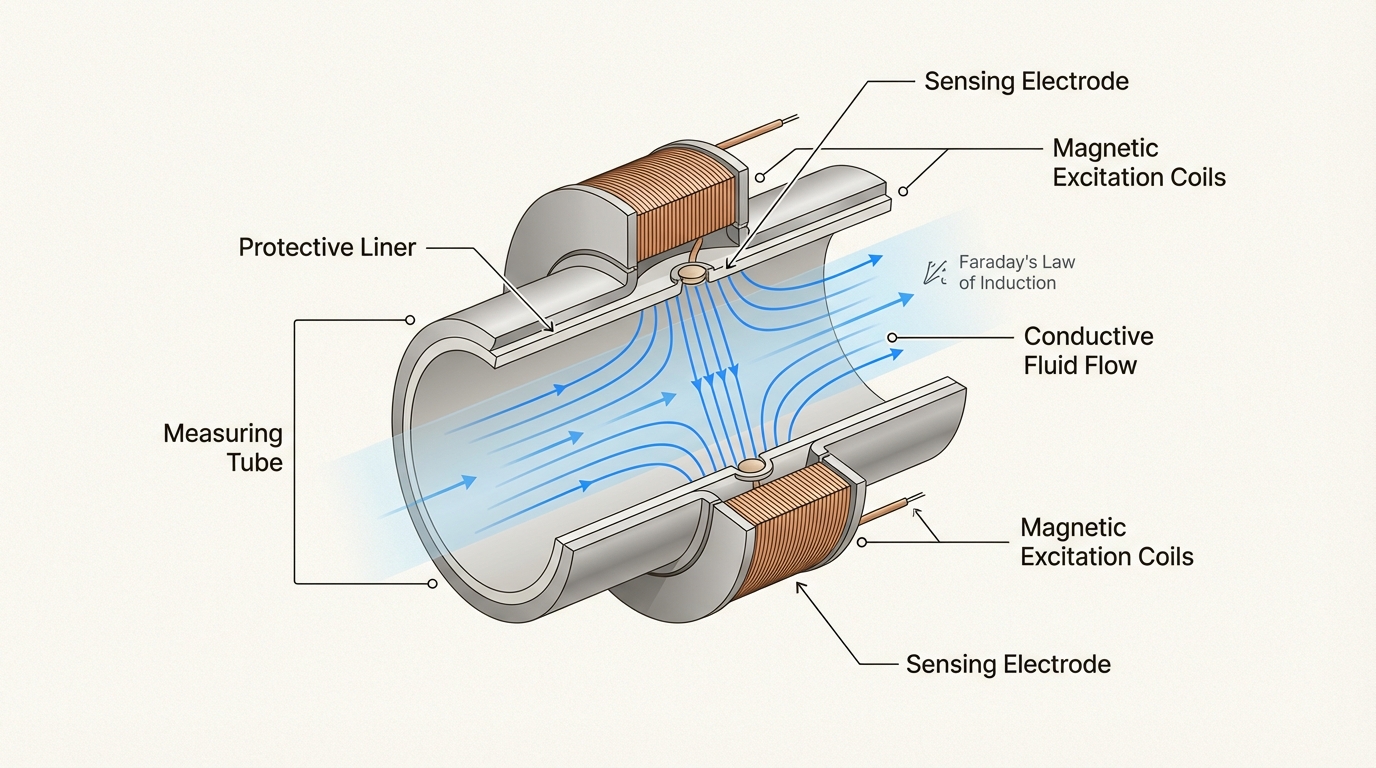

No moving parts means no wear. Turbine meters have bearings that seize. Positive displacement meters have gears that jam. Electromagnetic meters have a liner, electrodes, and a coil. Nothing rotates. Nothing wears out. In abrasive mining slurries, this alone can extend service life from months to years.
Bi-directional measurement. Many Australian applications need to measure flow in both directions: back-flushing filters, batching operations, or processes with return lines. Electromagnetic meters handle this natively. Mechanical meters often need separate forward and reverse calibration or can’t do it at all.
Accuracy stability. A turbine meter’s accuracy degrades as bearings wear. An electromagnetic meter maintains its ±0.2% to ±0.5% accuracy for years with no drift. For custody transfer applications where every litre counts, this matters.
Minimal pressure drop. Electromagnetic meters present the same obstruction as a length of pipe. Mechanical meters create pressure drop that costs pump energy. In low-pressure systems (like gravity-fed water lines), electromagnetic meters can mean the difference between adequate flow and insufficient pressure.
Temperature tolerance. Quality electromagnetic meters handle process temperatures up to 180°C and ambient temperatures to 60°C. That’s the difference between a meter that survives a Pilbara summer and one that fails in the first heatwave.
Key applications across Australian industries
Mining and slurry applications
Mining presents some of the toughest flow measurement challenges. Iron ore slurries in the Pilbara are abrasive enough to destroy a standard meter in weeks. Process chemicals can corrode 316 stainless steel. And when a meter fails, production stops.
For mining applications, electromagnetic flowmeters excel because:
- Polyurethane or ceramic liners withstand abrasive slurries that would destroy metal
- Hastelloy or titanium electrodes resist corrosive process chemicals
- No obstructions mean no blockage from oversized particles
We’ve helped sites specify mag meters for thickener underflow lines, tailings transport, and process water measurement. The key is matching the liner material to the specific slurry. Hard rubber works for mild applications. Polyurethane handles moderate abrasion. Ceramic or polyurethane with aluminum oxide backing survives the harshest conditions.
For more on selecting flow meters specifically for mining, see our flow meter selection guide for mining operations.
Water and wastewater
The water industry uses electromagnetic flowmeters more than any other technology. Here’s why:
Custody transfer requirements. Water utilities need meters approved to OIML R49 or MID MI-001 standards for billing. Modern electromagnetic meters meet these standards with ±0.2% accuracy.
Trade waste metering. Greater Western Water and other utilities require electromagnetic meters for trade waste customers discharging more than 25 kL/day. The meters must maintain ±2.5% tolerance and provide annual verification certificates.
Battery-powered options. For remote locations without power, battery-powered electromagnetic meters with IP68 burial ratings and GPRS communication eliminate the need for solar panels and expensive cabling.
No straight pipe requirements. Some models (like Endress+Hauser’s Promag W 0xDN) require zero upstream and downstream straight pipe. This matters when retrofitting existing pump stations where you can’t relocate valves or bends.
Chemical and pharmaceutical
Chemical plants and pharmaceutical facilities need more than just flow measurement. They need hazardous area approvals, hygienic certifications, and chemical compatibility.
Hazardous areas. Electromagnetic meters are available with IECEx and ATEX certifications for Zone 1 and Zone 2 installations. Intrinsically safe and flameproof options cover most requirements.
Hygienic applications. For food and beverage or pharmaceutical processes, electromagnetic meters come with 3A, EHEDG, and FDA approvals. Tri-clamp connections, polished surfaces, and materials that withstand CIP/SIP cycles are standard.
Chemical compatibility. PTFE or PFA liners handle aggressive chemicals. Tantalum electrodes resist hydrochloric acid. The right material combination can measure almost anything conductive.
Selecting the right electromagnetic meter type
Inline vs insertion: when to choose each
Inline (full-bore) electromagnetic meters are the standard choice. The meter body matches your pipe diameter, and the measurement is taken across the full cross-section. Choose inline when:
- Accuracy matters (±0.2% to ±0.5%)
- Pipe size is under DN200
- You have adequate straight pipe runs (typically 5 diameters upstream, 2 downstream)
Insertion electromagnetic meters use a probe that extends into the flow stream. They’re cost-effective for large pipes and can be installed without shutting down the line (hot-tap). Choose insertion when:
- Pipe size is DN200 or larger
- Cost is a primary concern
- You need retrofit capability without process shutdown
- Accuracy requirements are less critical (±1% to ±1.5%)
The trade-off is accuracy and straight pipe requirements. Insertion meters need more upstream straight pipe (often 10+ diameters) and measure velocity at a single point rather than averaging across the full bore.
Critical specifications for Australian installations
| Specification | What to Look For | Why It Matters |
|---|---|---|
| Ambient temperature | 60°C minimum | Pilbara and Bowen Basin regularly exceed 50°C |
| Ingress protection | IP66 or IP67 minimum | Dust and water protection for harsh environments |
| Liner material | Match to application | Hard rubber (water), PTFE (chemicals), polyurethane (slurries), ceramic (severe abrasion) |
| Electrode material | Match to fluid chemistry | 316L (general), Hastelloy C (corrosion), titanium (chlorides), tantalum (acids) |
| Conductivity | 5 μS/cm minimum | Lower conductivity requires special excitation |
| Power supply | 24V DC, 230V AC, or battery | Match to site infrastructure |
| Outputs | 4-20mA, pulse, HART, Modbus | Integration with existing control systems |
The ambient temperature rating is critical and often underspecified. A meter rated to 50°C will fail when installed in a Pilbara summer. Always check the full ambient range, not just the process temperature.
Major manufacturers and product lines
Siemens SITRANS FM series
Siemens offers the SITRANS FM electromagnetic flowmeter range, designed to integrate seamlessly with Siemens automation systems.
MAG 5100 W is purpose-built for water applications. It features hard rubber liners, 316L electrodes, and accuracy to ±0.5%. The SensorProm chip stores calibration data in the sensor itself, so replacing a transmitter doesn’t require recalibration.
MAG 6000 transmitters provide 0.2% accuracy and multiple communication options including HART, Modbus, and PROFINET. For sites running Siemens PLCs, this integration simplifies commissioning and diagnostics.
TRANSMAG 2 handles heavy slurry applications with pulsed DC magnetic field technology. It’s the choice when standard mag meters struggle with high solids content or noise.
If you’re already using Siemens PLCs, the SITRANS FM range offers the cleanest integration.
Endress+Hauser Promag series
Endress+Hauser dominates the hygienic and high-accuracy segments with their Promag line.
Promag W 0xDN is unique in requiring zero straight pipe runs. For retrofit applications where you can’t relocate valves or bends, this can save thousands in piping modifications. North East Water used this feature to avoid costly re-routing in a raw pump station upgrade.
Promag P 300 handles process applications with high-temperature capability and compact transmitters. It’s available with numerous hygienic approvals for food and pharmaceutical use.
Heartbeat Technology provides built-in verification without interrupting the process. This satisfies regulatory requirements for periodic verification without pulling the meter from line.

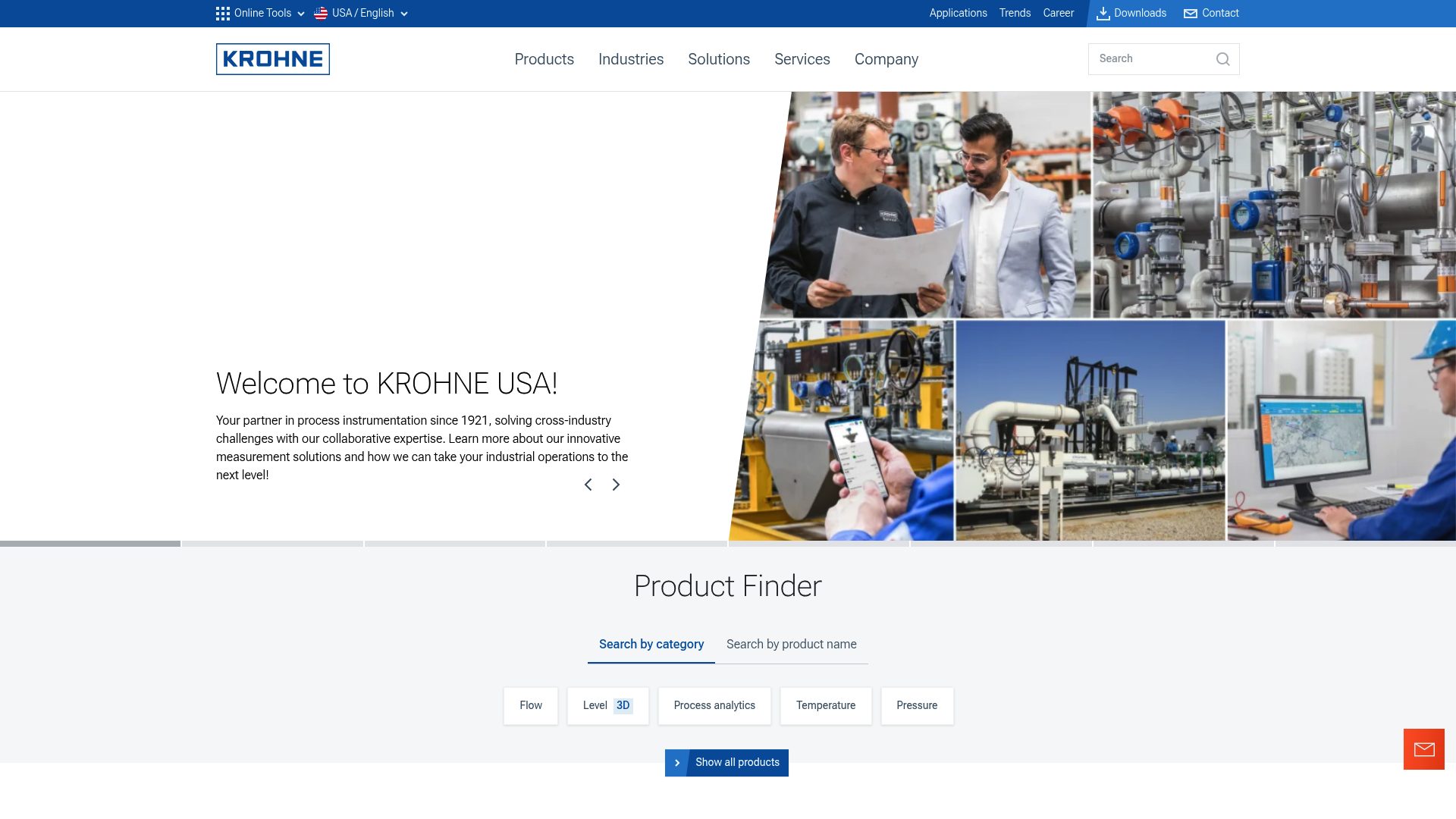

KROHNE OPTIFLUX and WATERFLUX
KROHNE emphasizes safety and remote monitoring in their Australian offerings.
OPTIFLUX 2300 and 4300 are available with SIL 2/3 certification for safety-critical applications. If your flow meter is part of an emergency shutdown or safety instrumented system, this certification is mandatory.
WATERFLUX 3070 is designed specifically for water utilities. Battery-powered options with 15-year life, IP68 burial rating, and integrated pressure/temperature measurement make it ideal for district metering.
myDevice platform provides smart service tools for commissioning, verification, and monitoring. The Bluetooth connectivity lets technicians configure meters from their phone without opening enclosures.
ABB electromagnetic flowmeters
ABB focuses on modular design and Industry 4.0 connectivity.
ProcessMaster FEP630 features SmartSensor technology with built-in verification. The modular transmitter design means you can upgrade communication protocols without replacing the entire meter.
AquaMaster FEW400 targets water utilities with battery operation and reduced bore design. It’s particularly suited to DMA (District Metered Area) monitoring and leakage management.
ABB Ability SRV500 is a portable verification tool that works across ABB’s electromagnetic flowmeter range. It provides traceable verification reports for regulatory compliance.
Yokogawa ADMAG series
Yokogawa specializes in difficult applications with their ADMAG line.
Dual frequency excitation reduces noise in slurry applications. By using both high and low frequency magnetic fields, the meter can separate flow signal from slurry noise.
ADMAG CA uses capacitive magnetic coupling instead of direct electrode contact. This allows measurement of low-conductivity fluids that would defeat conventional mag meters.
For mining slurries and other noisy applications, Yokogawa’s signal processing expertise often makes the difference between stable measurement and erratic readings.
The Endless Process Automation advantage

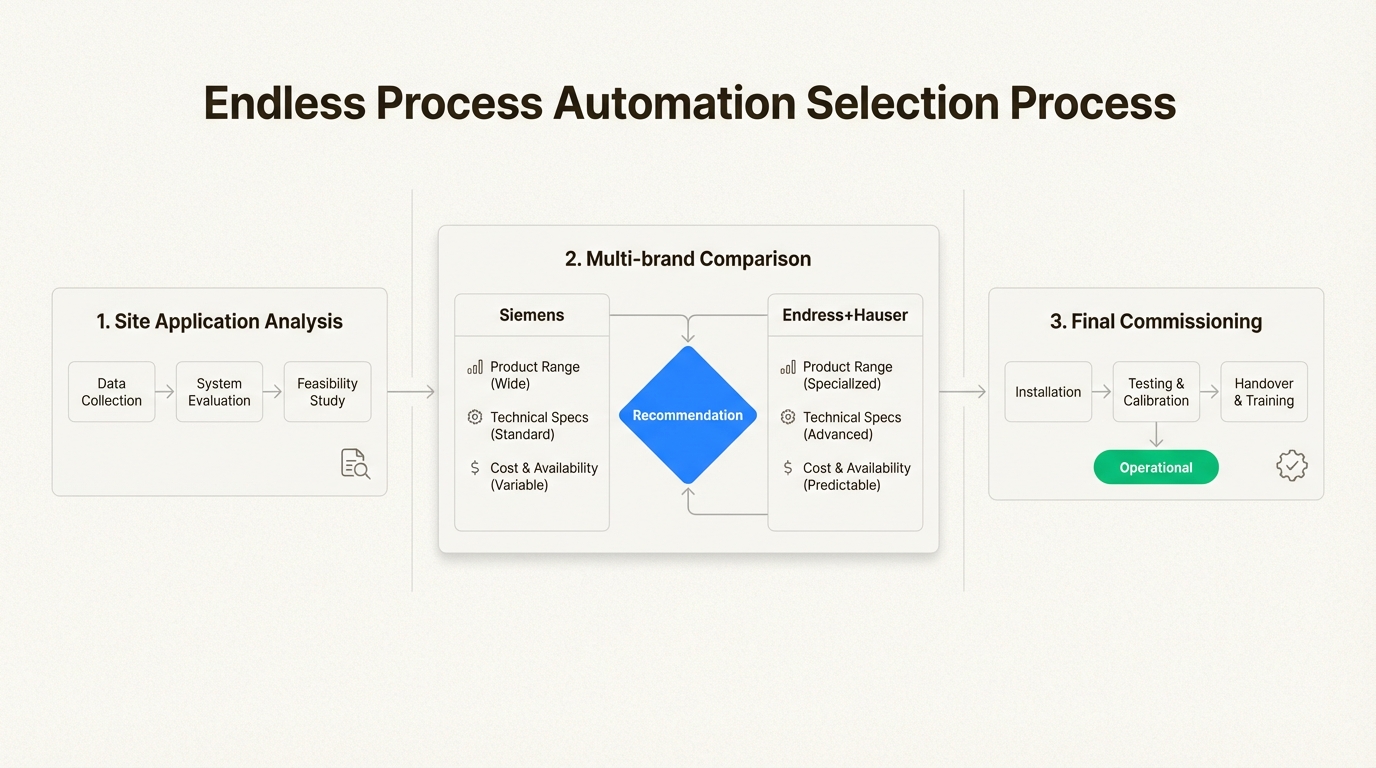

Here’s where we come in. Anyone can quote you a flow meter. The difference is knowing which meter, from which manufacturer, configured for your specific application.
Vendor-neutral sourcing. We’re not tied to any single brand. If Siemens has the best fit for your application, we’ll recommend Siemens. If Endress+Hauser makes more sense, we’ll tell you. Our recommendations are based on what works, not what we need to sell.
Queensland-based expertise. We operate from Narangba, Gladstone, and Mackay. We understand Pilbara heat, Gladstone humidity, and Bowen Basin dust because we work in these environments. When we specify an ambient temperature rating or ingress protection level, it’s because we’ve seen what happens when they’re inadequate.
Integration support. A flow meter doesn’t work in isolation. It needs to talk to your PLC, your SCADA system, your historian. We understand HART, Modbus, PROFINET, and Ethernet-APL. We can handle the commissioning and make sure your meter integrates properly with your existing control infrastructure.
Urgent supply and hard-to-find specifications. Sometimes you need a meter yesterday. Or you need an exotic material combination that isn’t stock. Because we deal with multiple manufacturers, we can often source what single-brand distributors can’t.
Contact us to discuss your specific application. We’ll give you straight answers about what you actually need, not what we want to sell you.
Common specification mistakes to avoid
We’ve seen the same errors repeat across Australian sites. Here are the big ones:
Underspecifying ambient temperature. A meter rated to 50°C will fail in a Pilbara summer. Always check the full ambient temperature range, especially for transmitters mounted in direct sun or enclosed spaces.
Wrong liner material for abrasive applications. Hard rubber is fine for clean water. It’s destroyed in months by iron ore slurry. Match the liner to the abrasion level: polyurethane for moderate, ceramic for severe.
Ignoring grounding requirements. Electromagnetic meters need proper grounding. In plastic or lined pipe, this means grounding rings or electrodes. Skip this and you’ll get erratic readings that seem like meter failure.
Inadequate straight pipe runs. Even “no straight pipe” meters have limits. If you install any meter immediately downstream of a control valve or pump, expect problems. Give yourself at least a few diameters of straight pipe wherever possible.
Not verifying conductivity. Electromagnetic meters need minimum fluid conductivity (typically 5 μS/cm). Deionized water, some hydrocarbons, and certain solvents won’t work. Always verify your fluid’s conductivity before specifying a mag meter.
Getting the right electromagnetic flowmeter for your application
Selecting an electromagnetic flowmeter isn’t just about picking a brand. It’s about matching the right technology, materials, and specifications to your specific application.
Consider your fluid: conductivity, temperature, abrasiveness, and chemistry. Consider your environment: ambient temperature, humidity, dust, and hazardous area classification. Consider your integration requirements: communication protocols, power availability, and control system compatibility.
Then consider your supplier. Do they understand Australian conditions? Can they source from multiple manufacturers to find the best fit? Will they support you through commissioning and beyond?
At Endless Process Automation, we’ve spent over 20 years helping Australian industrial sites solve measurement problems. We’re engineers first, salespeople second. If your process doesn’t need a fancy sensor, we’ll tell you. If a simpler solution exists, we’ll recommend it.
Need technical advice or a hard-to-find part? Contact Endless Process Automation for a vendor-neutral quote today. Call (+61) 480 568 379 or email sales@endlessautomation.com.au.
Frequently Asked Questions
What is the minimum conductivity required for an electromagnetic flowmeter?
Most standard electromagnetic flowmeters require a minimum fluid conductivity of 5 μS/cm. Some specialized models with capacitive coupling can measure lower conductivity fluids. Always verify your fluid conductivity before specifying a mag meter.
Can electromagnetic flowmeters measure slurries with high solids content?
Yes, with the right liner material. Polyurethane liners handle moderate abrasion from mining slurries. Ceramic liners survive severe abrasion. The key is matching the liner to the specific slurry.
Do I need straight pipe runs upstream of an electromagnetic flowmeter?
It depends on the model. Standard electromagnetic flowmeters typically require 5 diameters upstream and 2 diameters downstream. However, some models like the Endress+Hauser Promag W 0xDN require zero straight pipe.
Can electromagnetic flowmeters be used in hazardous areas?
Yes. Electromagnetic flowmeters are available with IECEx and ATEX certifications for Zone 1 and Zone 2 installations. Both intrinsically safe and flameproof options exist.
What ambient temperature rating do I need for Australian mining conditions?
For Pilbara, Bowen Basin, or similar hot environments, specify a minimum 60°C ambient temperature rating. We’ve seen meters rated to 50°C fail during summer heatwaves.
How do I choose between different electromagnetic flowmeter manufacturers?
Match the manufacturer to your priorities. Siemens integrates best with Siemens automation. Endress+Hauser excels in hygienic applications. KROHNE has SIL-certified models. ABB emphasizes modular design. Yokogawa specializes in difficult slurry applications.
