If you’re still sending operators out with clipboards to read gauges every two hours, you’re burning money. Not just in wages, but in the hidden costs of delayed response times, transcription errors, and the simple fact that humans miss things when it’s 48°C in the shade.
Automation measurement technologies aren’t new. They’ve been around for decades. But the gap between sites that use them effectively and those that don’t is widening. Fast. In this article, we’ll look at what these technologies actually do, why they matter for Australian industrial operations, and how to choose the right approach for your site.
The Real Cost of Manual Process Measurement
Let’s start with the obvious problem. Manual readings rely on people walking around with clipboards, writing down numbers, and (hopefully) entering that data into a system later. In theory, this works. In practice, it breaks down in predictable ways.
Human error is the first failure point. A tired operator misreads a gauge. Decimal points get transposed. Handwriting becomes illegible after eight hours in the heat. By the time that data reaches the control room, it’s already suspect.
Environmental conditions make it worse. In the Pilbara or Bowen Basin, summer temperatures regularly hit 50°C. Displays become hard to read. Equipment housing degrades faster. Dust ingress fouls mechanical gauges. In Gladstone, high humidity corrodes connections. These aren’t edge cases. They’re normal operating conditions in Australian industry.
The response lag is expensive. A process upset happens at 2:00 AM. The operator doesn’t discover it until the next round at 4:00 AM. Two hours of off-spec product. Two hours of wasted energy. Two hours of potential equipment damage. Real-time automation would have flagged the deviation in seconds.
The bottom line? Manual measurement isn’t just inefficient. It’s a liability. Automation isn’t a nice-to-have upgrade. It’s how you stay competitive.
What Are Automation Measurement Technologies?
At their core, these are sensors and transmitters that continuously monitor process variables and feed that data directly into your control system. No clipboards. No transcription. Just accurate, timestamped data available immediately.
Here’s what that actually looks like in the field:
Flow measurement covers several technologies depending on your application. Magnetic flowmeters work well for conductive liquids like water and slurries. Coriolis meters measure mass flow directly and handle viscous fluids. Vortex meters are robust for steam applications. Ultrasonic options work when you can’t cut into the pipe.
Level measurement has evolved significantly. Guided wave radar handles challenging conditions like foam and vapors. Free space radar (Endress+Hauser’s Micropilot series uses 80 GHz technology) works at longer distances. Pressure-based level is simple and reliable for liquids. Vibronic point switches like the Liquiphant FTL51B provide dependable high/low level detection.
Pressure and temperature measurement now uses smart transmitters with digital protocols. These aren’t just 4-20 mA signals. They carry diagnostic information, device status, and can be configured remotely.
Density measurement is where things get interesting. Traditional nuclear gauges work, but they come with regulatory burden, safety paperwork, and disposal headaches. Red Meters offers a non-nuclear alternative using patented inline deflection technology. Their Ruby software streams real-time density data to your phone or control room. No radiation. No source decay calculations.
Gas detection in hazardous areas is critical for safety and compliance. MSA Safety provides fixed gas detection systems including the Ultima X5000 gas monitor. These systems integrate with plant safety systems and provide immediate alarm notification.

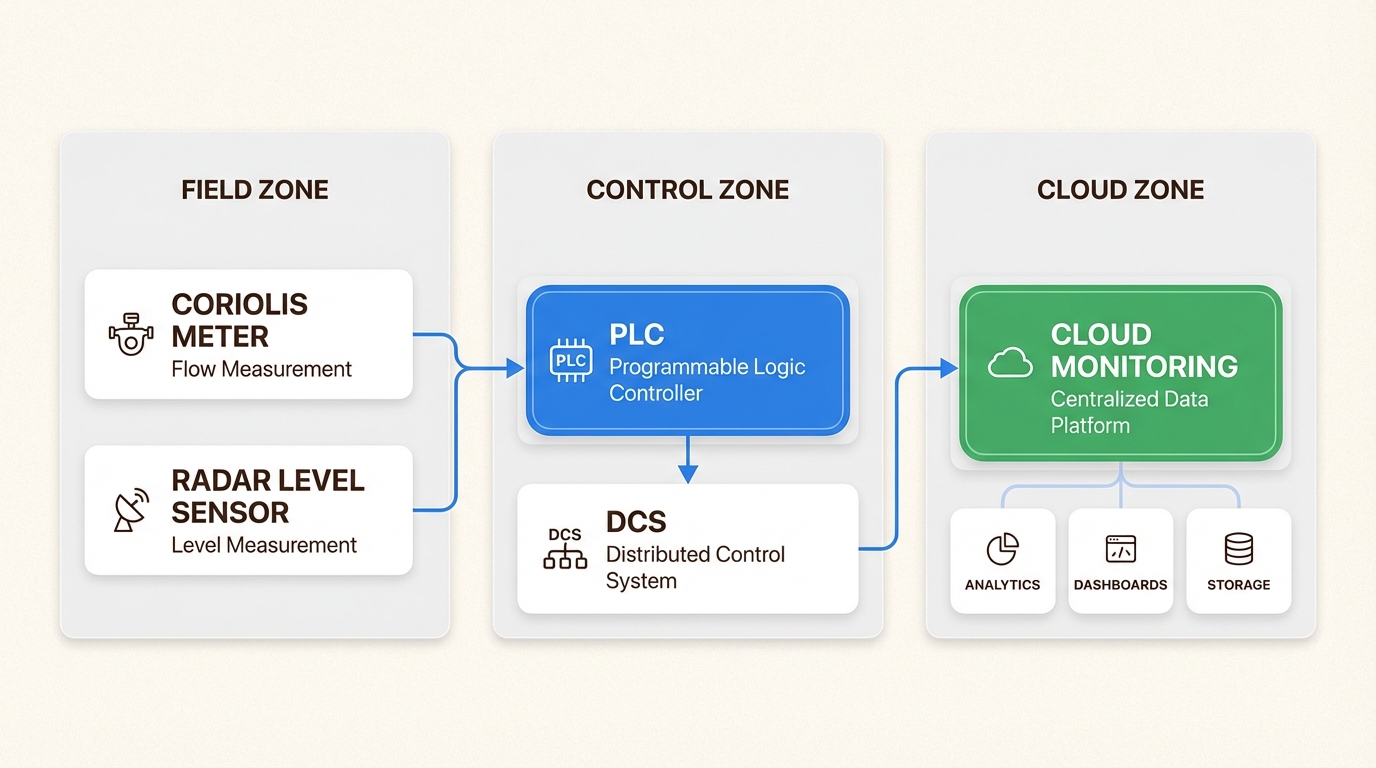

All of these devices connect to your control architecture, whether that’s a PLC, DCS like Rockwell Automation’s PlantPAx, or SCADA system. The data becomes part of your operational picture, not a separate manual process.
Five Ways Measurement Automation Drives Efficiency
1. Eliminating Human Error
Automated sensors don’t get tired. They don’t misread displays in bright sunlight. They don’t transpose digits. A magnetic flowmeter reports the same value at 2:00 PM on a Tuesday as it does at 2:00 AM on a Sunday. Consistency matters when you’re tracking process performance or billing for water usage.
2. Real-Time Process Optimization
When your measurement data updates every second instead of every two hours, you can actually control your process. Deviations get caught immediately. Control loops respond faster. You can trend data over time and spot gradual degradation before it becomes a failure. This is how you move from reactive maintenance to predictive operations.
3. Reduced Labor Costs
Let’s be honest. Sending qualified technicians on clipboard rounds is a waste of their skills. Automate the routine monitoring and redirect that labor to maintenance, optimization, and problem-solving. One technician with a tablet can monitor dozens of points remotely instead of walking the plant for hours.
4. Improved Compliance and Reporting
Environmental regulators want data. Lots of it. Automated systems log continuously with timestamps. Audit trails are built in. When the environmental officer asks for discharge flow rates from last March, you pull a report instead of digging through logbooks. For gas detection, automated logging tracks alarm events and calibration status automatically.
5. Predictive Maintenance
Smart transmitters don’t just measure process variables. They monitor themselves. A pressure transmitter can alert you when the signal becomes noisy, indicating a failing sensor before it gives false readings. Vibration monitoring on pumps, temperature trending on bearings. This is how you schedule maintenance on your terms instead of responding to breakdowns.
Australian Industrial Applications
Mining (Pilbara, Bowen Basin)
Slurry density measurement is critical for tailings management and process control. Traditional nuclear densitometers work, but sites are increasingly looking at non-nuclear alternatives like Red Meters to eliminate radiation safety requirements. Flow measurement in processing circuits handles everything from raw water to concentrate. The challenge is the environment: extreme heat, dust, and vibration. Equipment needs to be rated for the conditions, not just the process.
Oil & Gas (Gladstone, Surat Basin)
Custody transfer metering demands accuracy. These are billing points where small errors cost real money. Gas detection in hazardous areas is non-negotiable. MSA Safety provides fixed gas detection systems designed for these environments. In Gladstone specifically, the high humidity means paying attention to enclosure ratings and corrosion-resistant materials.
Water and Wastewater
Level monitoring in reservoirs, flow measurement for billing, and treatment process optimization all depend on reliable instrumentation. The Promag W 0xDN from Endress+Hauser is worth noting here. It’s an electromagnetic flowmeter that installs without cutting the pipe, which saves significant downtime during retrofits.
Food and Beverage
Hygienic approvals (3A, EHEDG) matter here. Instruments need to handle CIP/SIP cleaning cycles without degradation. Endress+Hauser’s Compact Line includes products like the Micropilot FMR43 radar and Cerabar PMP43 pressure transmitter specifically designed for these applications. Batch consistency depends on accurate measurement of level, flow, and temperature.
Choosing the Right Measurement Technology
Here’s something the single-brand vendors won’t tell you: no one manufacturer has the best solution for every application. Siemens might have the right flowmeter for one spot. Endress+Hauser might have the better level solution. Rockwell might integrate better with your existing control system. MSA is the go-to for gas detection.
Vendor neutrality matters. When you work with a supplier who can source across multiple brands, you get the right instrument for each job, not just what’s on their shelf.
Key selection criteria to consider:
- Process conditions – Temperature, pressure, corrosion, abrasion. Match the instrument to the actual service, not just the pipe size.
- Accuracy requirements – Custody transfer needs higher accuracy than tank level indication. Don’t over-specify and waste money, but don’t under-specify and create problems.
- Integration with existing systems – HART, Foundation Fieldbus, PROFIBUS, 4-20 mA. Make sure the device talks to your control system.
- Hazardous area certifications – Ex, IECEx, ATEX. Australian sites need proper hazardous area classification.
- Local support availability – When it breaks (and eventually it will), you need parts and expertise locally, not shipped from Europe.
At Endless Process Automation, we source from Siemens, Rockwell Automation, Emerson, Endress+Hauser, MSA Safety, and others. We’re not tied to any single vendor. That means we can recommend what actually fits your application, not what we need to move from inventory.
Getting Started with Process Measurement Automation
You don’t need to automate everything at once. Start with your biggest pain point. Where are manual readings causing the most problems? Where are you losing product or missing data?
Audit your current measurement points. Identify the high-error manual readings, the critical process variables, and the compliance requirements. These are your quick wins.
Plan for integration, not just installation. A new flowmeter is useless if the data doesn’t reach your control system. Think about wiring, communications protocols, and where the data needs to go.
Need technical advice or a hard-to-find part? Contact Endless Process Automation for a vendor-neutral quote today.
Frequently Asked Questions
What types of automation measurement technologies work best for mining applications?
Mining applications typically need robust flow measurement (magnetic flowmeters for slurries), non-nuclear density measurement (Red Meters for tailings), and level measurement (radar for sumps and tanks). The key is selecting equipment rated for dust, vibration, and extreme temperatures common in Australian mining regions.
How do automation measurement technologies improve business efficiency in process industries?
They eliminate human error in data collection, provide real-time process visibility, reduce labor costs by eliminating manual rounds, improve regulatory compliance through automatic logging, and enable predictive maintenance through continuous monitoring and diagnostics.
Are non-nuclear density meters like Red Meters accurate enough to replace nuclear gauges?
Yes. Red Meters uses patented inline deflection technology to provide real-time density measurement without radiation. For many slurry and bulk solid applications, they provide comparable accuracy while eliminating regulatory burden, safety paperwork, and source disposal costs.
What should I consider when choosing between different flow measurement technologies?
Consider the fluid properties (conductivity, viscosity, abrasiveness), pipe size and material, accuracy requirements, installation constraints (can you cut the pipe?), and integration with your existing control system. Magnetic flowmeters work for conductive liquids. Coriolis measures mass flow directly. Ultrasonic works for non-invasive measurement.
How does vendor neutrality benefit me when sourcing automation measurement technologies?
Single-brand vendors can only sell you what they stock. A vendor-neutral supplier like Endless Process Automation can source the best instrument for each specific application across multiple manufacturers, ensuring optimal performance and value rather than forcing a compromise solution.
What hazardous area certifications should I look for in Australian industrial applications?
Look for IECEx certification (internationally recognized) and Ex certification for hazardous areas. Australian standards align with IECEx, and proper certification ensures equipment is safe for use in potentially explosive atmospheres common in oil, gas, and chemical processing.
How can I justify the cost of upgrading from manual to automated measurement?
Calculate the cost of current manual rounds (labor hours), errors and their consequences (off-spec product, environmental incidents), delayed response to upsets, and compliance reporting overhead. Automation typically pays for itself through labor savings, reduced errors, and improved process efficiency within 12-24 months.
